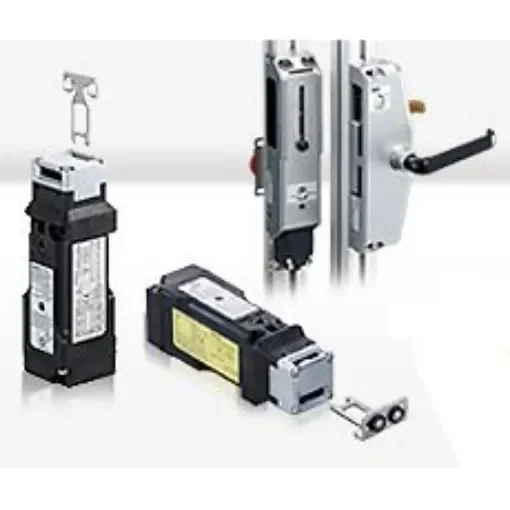

Idec HS6E Safety Interlock Switch, 1NC/1NC + 2NC + 1NC, Keyed, Spring Lock - HS6E-M44B05-G
Compact Idec HS6E Safety Interlock Switch with keyed lock for enhanced safety.
Manufacturer part number: HS6E-M44B05-G
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Lock Style = Keyed
Normal State Configuration = 1NC/1NC + 2NC + 1NC
Lock Type = Spring Lock
Maximum AC Voltage = 250V
Maximum DC Voltage = 30V
Connection Type = Cable
IP Rating = IP67
Series = HS6E
Minimum Operating Temperature = -25°C
IDEC SwitchThe IDEC HS6B subminiature 5-pole safety interlock switch is the worlds smallest switch. It comes in a dimension of 30mm x 15mm x 78mm. This interlock switch is available with a 5m cable length.Features and Benefits• 1NC/1NC(main), 2NC(door monitor) and 1NC(lock monitor) contact configuration • Cable connection type • Compact • Easy to install • Highest safety achieve by dual contacts and monitor contacts • Integral cable design minimizes wiring, preventing wiring • LED indicator shows solenoid operation • Service temperature ranges between -25°C and 50°C • Spring lock type • Two actuator entry slots provide flexibility for installationApplications• Tight spacesCertifications• CCC certified • CE certified • CSA C22.2 No• 14 • CULus listed • EN1088 • EN60947-5-1 • EN954-1 • GB14048.5 • GS-ET-15 • IEC 60529 • IEC /EN60204-1 • IEC /EN60947-5-1 • IP67 rating • ISO14119 • SO 13849-1 • TÜV approved • UL508 • UL-listed
