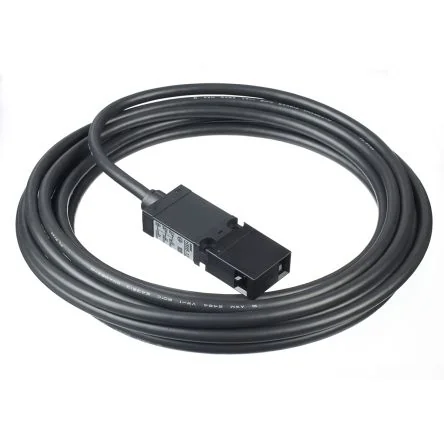

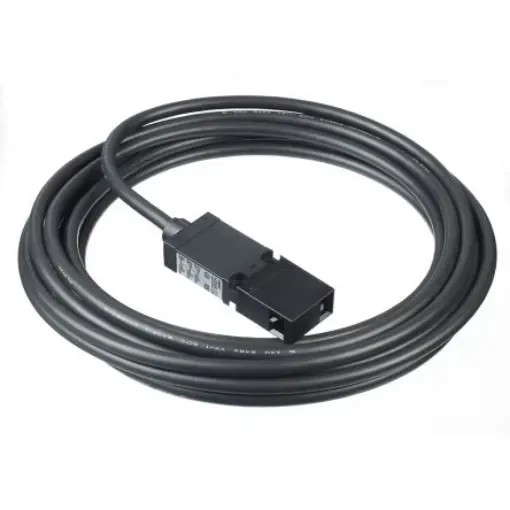

Idec HS6B Safety Interlock Switch, 2NC/1NO - HS6B-12B05
The Idec HS6B Safety Interlock Switch ensures maximum safety with a compact design and versatile installation options.
Manufacturer part number: HS6B-12B05
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Normal State Configuration = 2NC/1NO
Lock Type = Interlock
Safety Contacts = NO/2NC
Maximum AC Voltage = 250V
Maximum DC Voltage = 30V
Connection Type = Cable
IP Rating = IP67
Series = HS6B
Width = 15mm
IDEC SwitchThe IDEC HS6B subminiature 3-pole safety interlock switch is the worlds smallest switch. It comes in a dimension of 30mm x 15mm x 78mm. This interlock switch is available with a 5m cable length.Features and Benefits• 2NC/1NO contact configuration • Cable connection type • Can be mounted in two directions • Compact • Easy to install • Highest safety achieve by dual contacts and monitor contacts • Integral cable design minimizes wiring, preventing wiring mistakes • Interlock type • Service temperature ranges between -25°C and 70°C • Two actuator entry slots provide flexibility for installationApplications• DoorsCertifications• CCC certified • CE certified • CSA C22.2 No• 14 • CULus listed • EN1088 • EN60947-5-1 • EN954-1 • GB14048.5 • GS-ET-15 • IEC 60529 • IEC /EN60204-1 • IEC /EN60947-5-1 • IP67 rating • ISO14119 • SO 13849-1 • TÜV approved • UL508 • UL-listed
