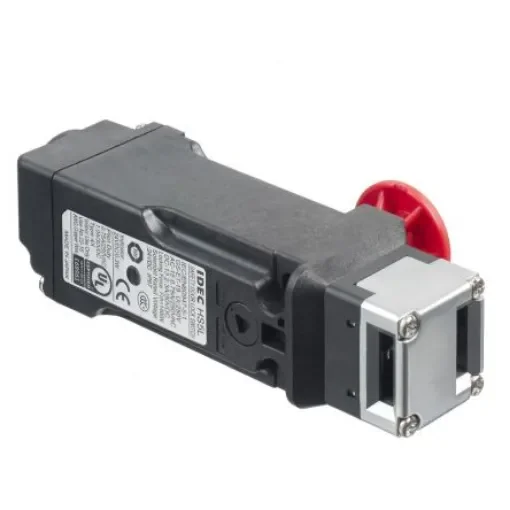

Idec HS5L Safety Interlock Switch, 2NC, Keyed, Spring Lock - HS5L-DD44LM-G
Compact Idec HS5L safety interlock switch with 2NC contacts and manual lock release for enhanced safety.
Manufacturer part number: HS5L-DD44LM-G
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Safety Contacts = 2NC
Maximum AC Voltage = 250V
Maximum DC Voltage = 30V
Connection Type = M20
IP Rating = IP67
Series = HS5L
Length = 35mm
Idec SwitchThe Idec HS5L series solenoid interlock switch has a locking strength of 1400N and four contacts in a compact housing. It is designed to work in applications with limited mounting spaces such as small doors. This model is equipped with a manual lock release key and an LED indicator.Features and Benefits• 2NC-2NC safety contacts • Compact in size • Dual safety circuit and four-circuit independent outputs available • Gold-plated contacts suitable for small loads • Green LED illumination colour is green • Head orientation can be rotated eight different ways • M20 connection type • Operating temperature ranges between -25°C and 55°C • Spring clamp terminal block prevents loosening of wires due to vibration • Spring lock typeApplications• Cutting • Doors • Pressing • RotatingCertifications• CCC certified • CE certified • cUL listed • EN ISO14119 • IP67 rated • TUV
