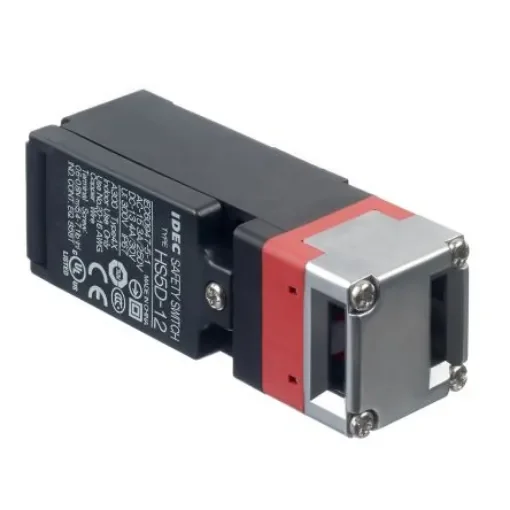

Idec HS5D Safety Interlock Switch, 2NC/1NO, Handle - HS5D-12ZRN

Lock Type = Interlock
Safety Contacts = NO/2NC
Maximum AC Voltage = 250V
Maximum DC Voltage = 30V
Connection Type = G1/2
IP Rating = IP67
Series = HS5D
Length = 30mm

Idec SwitchThe Idec HS5D series safety interlock switch has three contact types with dual enabling contacts and a monitor contact. The head removal detection function turns off the main circuit when the head of the switch is removed.Features and Benefits• 1NO-2NC safety contacts • Actuator is interchangeable with HS5E and HS5L • Compact in size • G1/2 connection type • Head orientation can be rotated in eight different ways • Interlock lock type • M3 terminal screws for easy wiring • No need of grounding due to double insulation structure • Operating temperature ranges between -30°C and70°CApplications• DoorsCertifications• CCC certified • CE certified • cUL listed • EN ISO14119 • IEC60947-5-1 • IP67 rated • KOSHA approved • TUV
