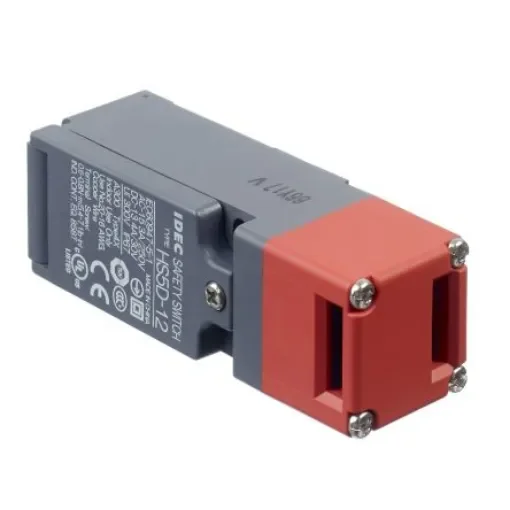

Idec HS5D Safety Interlock Switch, 2NC/1NO, Handle - HS5D-12RNP
Ensure safety with the Idec HS5D Interlock Switch featuring 2NC/1NO configuration and robust design.
Manufacturer part number: HS5D-12RNP
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Lock Style = Handle
Normal State Configuration = 2NC/1NO
Lock Type = Interlock
Safety Contacts = NO/2NC
Maximum AC Voltage = 250V
Maximum DC Voltage = 30V
Connection Type = PG13.5
IP Rating = IP67
Series = HS5D
Maximum Operating Temperature = +70°C
Head removal detection function turns OFF the main circuit (11-12) when the head of the HS5D is removed. 3 contact types with dual enabling contacts and a monitor contact are available. Can be installed in narrow spaces. (30W x 30D x 91H mm) The actuator is interchangeable with HS5E and HS5L. Double insulation structure eliminates the need for grounding. The head orientation can be rotated, allowing 8 different actuator entries. NC contacts with direct opening action Proprietary actuators prevent invalidation of the contacts M3 terminal screws for easy wiring. Gold-plated contacts suitable for small loads.
