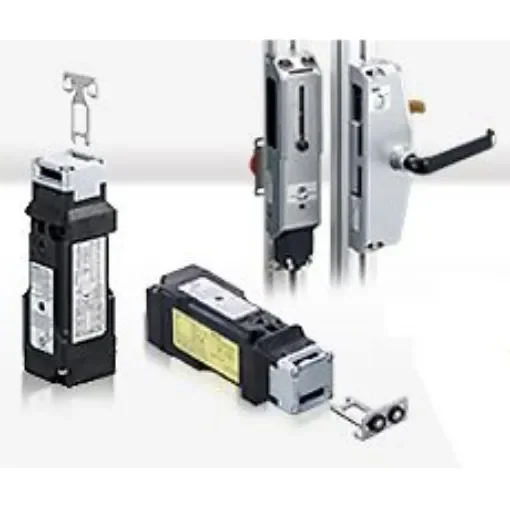

Idec HS1L Safety Interlock Switch, 1NC/1NC + 1NC/1NO + 2NC, Keyed, Spring Lock - HS1L-R44KMSRM-R

Lock Style = Keyed
Normal State Configuration = 1NC/1NC + 1NC/1NO + 2NC
Maximum DC Voltage = 30V
IP Rating = IP67
Series = HS1L
Maximum Current = 10A

Idec SwitchThe Idec HS1L series safety interlock switch has increased locking strength of 3000N and six contacts in a compact dimension housing. It is designed for applications with large machines that have heavy doors or gates. This model is equipped with a manual lock release key and an LED indicator.Features and Benefits• 1NC+1NC (main), 1NO/1NC (door monitor) and 2NC (lock monitor) safety contacts • Compact in size • Easy to wire screw terminals • LED illumination colour is red • M20 connection type • No barriers on the sides of the contact terminal • Open, closed and locked status of the door can be monitored • Operating temperature ranges between -20°C and 55°C • Spring lock typeApplications• DoorsCertifications• CCC certified • CE certified • cUL listed • IP67 rated • TUV
