ICP Con I-7188EX-X506 CR - Industrial Device Server
The ICP Con I-7188EX-X506 CR is a powerful and compact industrial device server, designed to seamlessly connect serial devices to an Ethernet network. This advanced controller acts as a reliable bridge between legacy hardware and modern network infrastructures. Thanks to its robust build quality and versatile port configuration, this device is the ideal solution for factory automation, building management, and data acquisition.
Key Features
- Versatile Connectivity: Equipped with three RS-232 ports and one RS-485 port for broad compatibility with various industrial sensors and machines.
- Embedded Ethernet Controller: Fitted with a 10/100 Base-TX Ethernet port for fast and stable data transfer over the local network.
- Compact Design: Its small size makes installation in tight control cabinets easy, while the DIN-rail mounting ensures a secure installation.
- High Reliability: Built with industrial components that withstand harsh working environments and temperature fluctuations.
Product Specifications

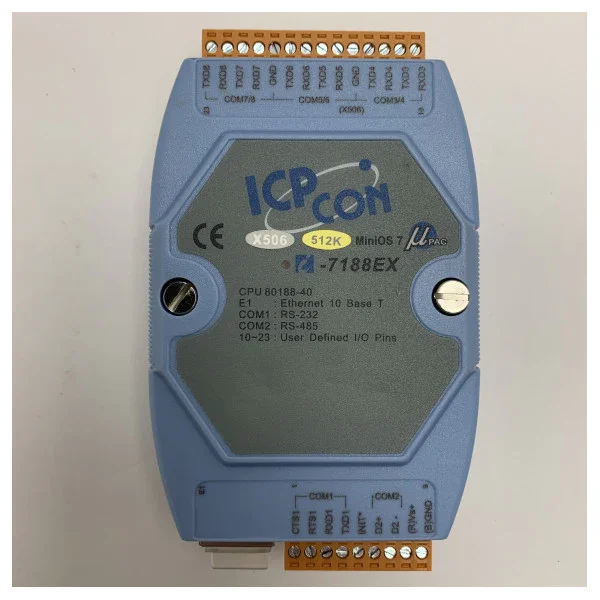

The I-7188EX-X506 CR features a powerful 80188-40 embedded CPU that ensures fast processing of commands. The device is equipped with 512 KB Flash memory and 512 KB SRAM for efficient data storage and program execution. Communication occurs via a standard RJ-45 Ethernet connection.
Regarding the serial ports, this model offers a unique configuration: three independent RS-232 ports and an additional RS-485 channel that is particularly suitable for multi-drop networks over long distances. The power supply is flexible with an input range of +10 to +30 VDC, making it easy to integrate into existing industrial systems. The operating temperature ranges from -25 degrees to +75 degrees Celsius, highlighting its durability in extreme conditions.
Technical Details at a Glance
- FeatureSpecificationModelI-7188EX-X506 CRProcessor80188 CPU (40 MHz)Memory512 KB Flash / 512 KB SRAMEthernet10/100 Base-TX (RJ-45)COM Ports3x RS-232, 1x RS-485Power+10 VDC to +30 VDCMountingDIN-rail support
