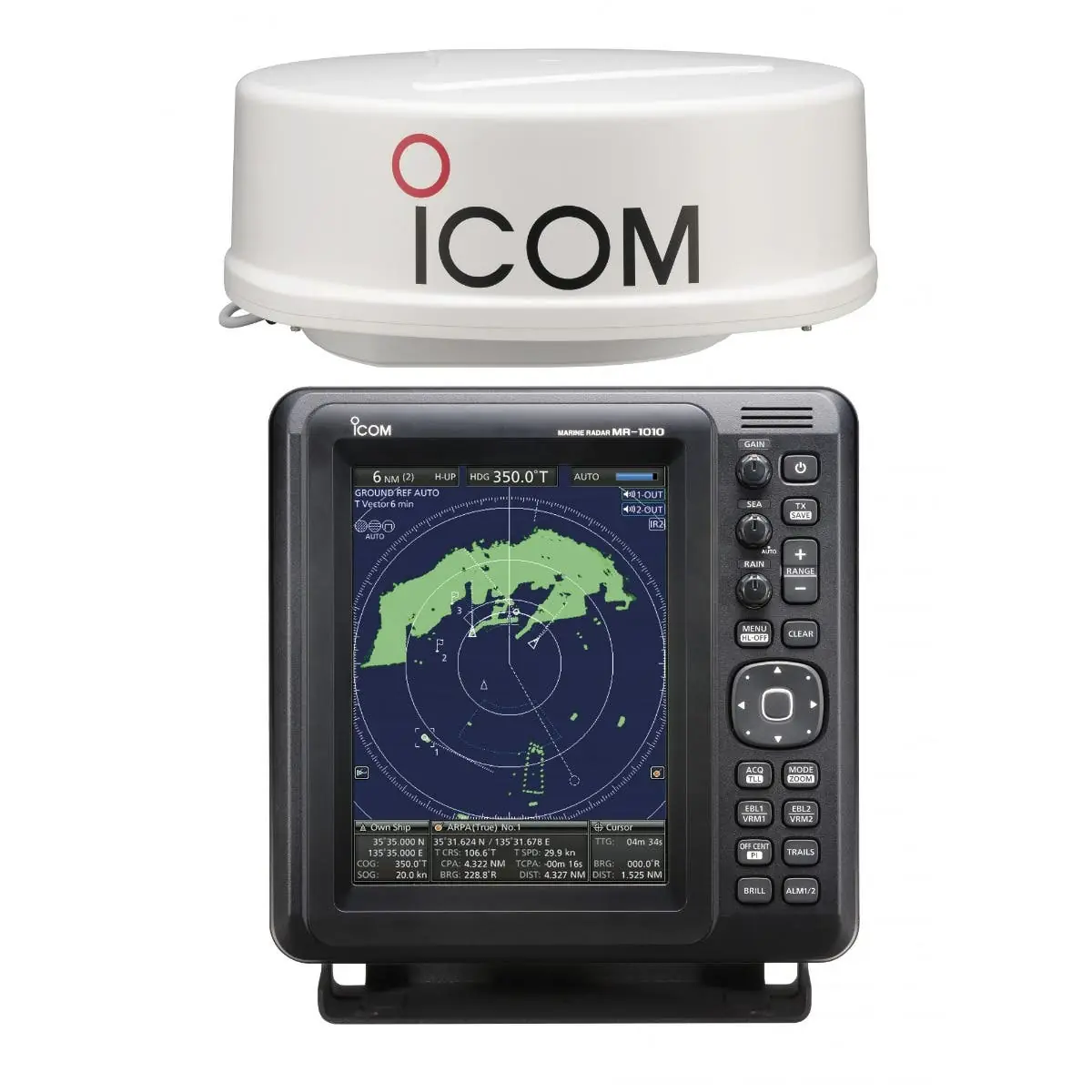

The Icom MR-1010RII is a marine radar system designed to enhance navigational safety and situational awareness for maritime operators. It features a 10.4-inch color TFT LCD display, providing a wide viewing angle and vivid echoes with adjustable intensity across 16 levels. The display's brightness and color settings can be easily adjusted using the "BRILL" button to suit various lighting conditions.
- Simplified ARPA (Automatic Radar Plotting Aid): Automatically tracks up to five targets within a designated watch area, or up to ten targets manually. Provides detailed information such as position, course, speed, CPA (Closest Point of Approach), TCPA (Time to Closest Point of Approach), bearing, and distance. Activates alarms when targets enter predefined CPA and TCPA limits.
- DSC (Digital Selective Calling) Information Function: When connected to a DSC radio, it receives and displays up to 20 DSC messages on the radar echo. Supports MOB (Man Overboard) position information, assisting in search and rescue operations.
- AIS (Automatic Identification System) Overlay Function: Integrates with external AIS devices to overlay up to 100 AIS target icons on the radar display. Provides vessel information such as AIS class, MMSI number, vessel name, course, speed, CPA, TCPA, bearing, and distance.
- Wide Viewing Angle Color TFT LCD: Offers bright, vivid echoes with 16-step gradient intensity. Screen intensity and color settings (day, night, and user-defined) can be instantly adjusted with the "BRILL" button.
- Multi-Lingual Intuitive User Interface: Supports multiple languages, including English, Indonesian, Korean, Portuguese, Spanish, Thai, and Vietnamese. Features a large eight-direction cursor key for smooth operation, even when wearing gloves.
- Optional Video Output Unit: With the optional UX-252 video output unit, the MR-1010RII can be connected to an external display, allowing simultaneous observation of radar echoes on both the main unit and the external screen.
- TLL (Target Latitude Longitude) Function: Allows marking of points with icons and transfers position data via NMEA TLL sentences to other NMEA 0183 devices, such as external plotters.
- True Trail Function: Cancels own ship movement and displays true moving objects with trails, while static objects are not trailed.
- Wide DC Input Range: Operates on a 10.2–42 V DC input, preventing over-voltage damage.
- User Programmable Alarm Zones: Features two user-programmable alarm zones for customizable alerts.
- Waypoint Indication: Supports waypoint indication for enhanced navigation.
- Designed and Manufactured in Japan: Ensures high-quality construction and reliability.
Technical Specifications:
Display Unit:
- Type: 10.4-inch Color TFT LCD
- Resolution: 480 × 640 dots
- Minimum Range: 25 m (82 ft) at 1/8 NM range
- Maximum Range: 36 NM
- Range Scales: 1/8, 1/4, 1/2, 3/4, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 32, 36 NM
- Preheat Time: 90 seconds
- Power Supply: 10.2–42 V DC
- Power Consumption: Approximately 55 W at zero wind velocity
- Usable Temperature Range: −15°C to +55°C (5°F to 131°F)
- Input Data Format: NMEA 0183, N+1, AUX, IEC61162-2
- Output Data Format: NMEA 0183
Scanner Unit:
- Type: 60 cm (2 ft) Radome Scanner
- Rotation Speed: 24, 36 rpm typical
- Horizontal Beamwidth: 4° typical
- Vertical Beamwidth: 22° typical
- Sidelobe: −22 dB typical
- Usable Temperature Range: −25°C to +70°C (−13°F to 158°F)
- Usable Humidity Range: Less than 95% at 40°C (104°F)
- Frequency: 9410 MHz ±30 MHz
