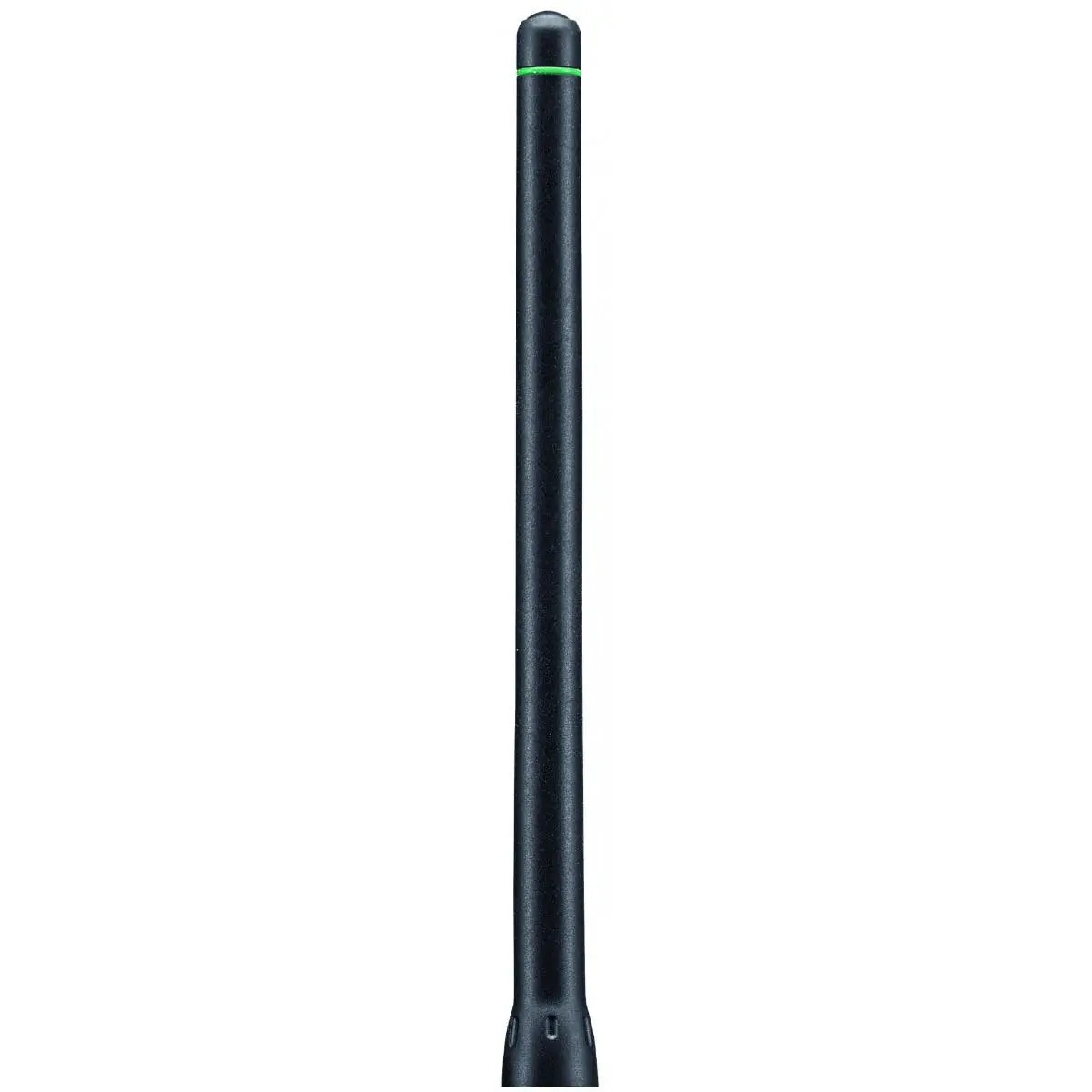

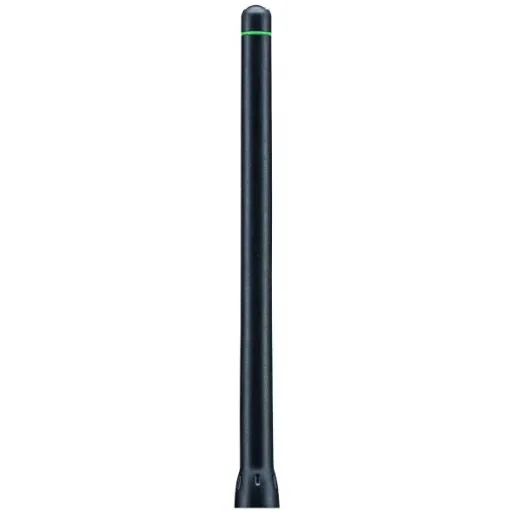

The Icom FA-SC58V is a flexible VHF antenna designed as a replacement for the Icom IC-M85 marine handheld transceiver. This genuine Icom accessory ensures optimal performance and durability for your marine communication needs.
- Original Replacement Part: Specifically engineered for the Icom IC-M85, ensuring seamless compatibility and performance.
- Flexible Design: Constructed with a soft and flexible material, the antenna can withstand shocks and various weather conditions, making it ideal for marine environments.
- Screw-Type Connector: Equipped with a screw-type connector for a secure and reliable attachment to the transceiver.
- Frequency Range: Operates within the VHF marine band, covering frequencies from 150 MHz to 174 MHz.
- Compact Dimensions: Measures approximately 163 mm (6.4 inches) in length, providing a balance between portability and performance.
- Lightweight: Weighs approximately 25 grams (0.025 kg), adding minimal bulk to the handheld device.
Technical Specifications
- Frequency Coverage: 150 MHz – 174 MHz
- Connector Type: Screw-type
- Length: 163 mm (6.4 inches)
- Weight: Approximately 25 grams (0.025 kg)
- Impedance: 50 ohms
- Gain: 0 dBi
Materials
The antenna is constructed with a combination of rubber and metal components, providing flexibility and durability suitable for marine environments.
Dimensions
- Length: 163 mm (6.4 inches)
- Width: Approximately 12.7 mm (0.5 inches)
- Height: Approximately 12.7 mm (0.5 inches)
Compatibility Information
The FA-SC58V antenna is compatible with the following Icom marine handheld transceivers:
- IC-M85
- IC-M85UL
- IC-M24
- IC-M34
- IC-M36
- IC-M93D
This wide compatibility ensures that users with various Icom marine handheld radios can benefit from the FA-SC58V antenna.
