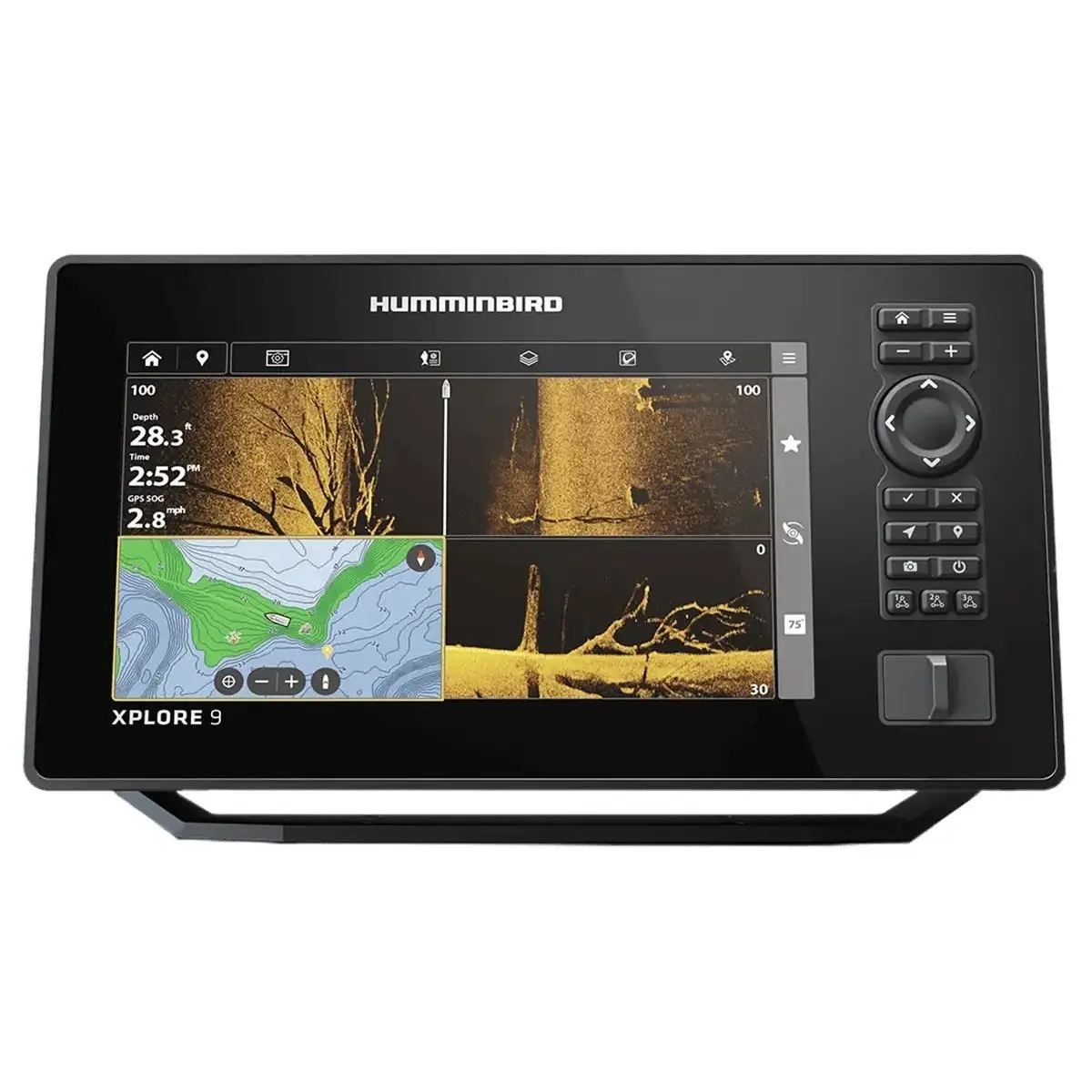

The Humminbird XPLORE 9 MSI+ Fish Finder Combo is a high-performance device designed to enhance your fishing experience with advanced imaging and navigation technologies.
- Full-HD Display with Cross Touch® Interface: Features a 9-inch diagonal screen with a resolution of 1280 x 720 pixels, offering clear and detailed visuals. The Cross Touch interface allows control via touchscreen or keypad, providing flexibility in various conditions.
- MEGA Side Imaging+ and MEGA Down Imaging+: Provides extended coverage up to 200 feet on either side and below the boat, delivering 20% more detail and 60% increased range and depth compared to standard MEGA Imaging.
- Dual Spectrum CHIRP Sonar: Offers two search modes—Wide Mode for maximum coverage and Narrow Mode for detailed fish arches and bottom structure clarity.
- Internal GPS and Humminbird Basemap: Includes an enhanced basemap with coverage for over 13,000 lakes in the U.S. and Canada, major U.S. coastal waters, and 170 million acres of water, aiding in confident navigation.
- One-Boat Network™ Compatibility: Seamlessly integrates with Minn Kota trolling motors and anchors, allowing control from the console, remote app, or foot pedal.
- Advanced Waypoint Management: Syncs up to 10,000 waypoints between devices, with customizable icons and color-coding for easy organization and quick access.
Technical Specifications:
- Display Size: 9 inches (diagonal)
- Display Resolution: 1280 x 720 pixels
- Sonar Capabilities: MEGA Side Imaging+, MEGA Down Imaging+, Dual Spectrum CHIRP
- Sonar Frequencies Supported: Narrow Mode: 180-240 kHz, Wide Mode: 140-200 kHz, Full Mode: 150-220 kHz
- Depth and Range: MEGA Side Imaging+: Up to 200 feet (61 meters), MEGA Down Imaging+: Up to 200 feet (61 meters)
- Connectivity: NMEA 2000®, Bluetooth®, Ethernet, Wi-Fi
- Memory Card Slots: Dual Micro SD
- Power Input: 10-20 volts
- Power Output: Peak-to-Peak: 8,000 Watts, RMS: 1,000 Watts
- Mounting Location: Transom
- Waterproof Rating: IPX7
- GPS Chartplotting: Included
- Waypoints, Routes, Tracks/Points: Waypoints: 10,000, Routes: 50, Tracks/Points: 50/20,000
- Compatibility: MEGA Live Imaging, MEGA 360 Imaging, LakeMaster®, CoastMaster™, Navionics® Gold/HotMaps, Navionics® Platinum+, Minn Kota Advanced GPS Navigation, Minn Kota i-Pilot Link, Minn Kota Talon Shallow Water Anchor
Materials: High-quality marine-grade materials designed for durability and performance in various water conditions.
Dimensions:
- Length: 15.9 cm (6.26 inches)
- Height: 29.69 cm (11.69 inches)
- Width: 8.38 cm (3.3 inches)
