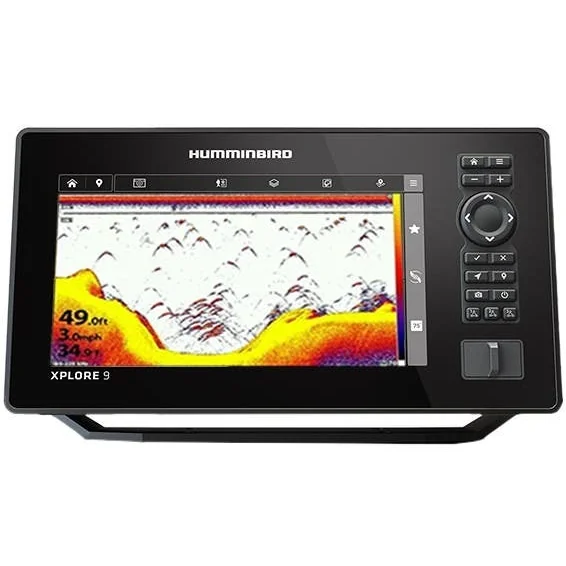

Humminbird - XPLORE 9 HD Fish Finder Combo - 412000-1

The Humminbird XPLORE 9 HD Fish Finder Combo is a high-performance device designed to enhance your fishing experience with advanced technology and user-friendly features.

• Full-HD Display with Cross Touch® Interface: Features a 9-inch, 1280 x 720 pixel Full-HD display with an ultra-thin, anti-glare screen for optimal visibility in various lighting conditions. The Cross Touch interface allows control via touchscreen or keypad, providing flexibility based on user preference.
• Dual Spectrum CHIRP Sonar: Offers two search modes—Wide Mode for maximum coverage and Narrow Mode for detailed bottom scanning—enabling precise fish detection and bottom structure identification.
• MEGA Side Imaging+ and MEGA Down Imaging+: Provides crystal-clear imaging up to 200 feet on either side of the boat and down to 200 feet below, with 20% more detail and 60% more range than previous MEGA Imaging technologies.
• Internal GPS and Humminbird Basemap: Includes a built-in GPS system with enhanced basemap coverage of over 13,000 lakes and major U.S. coastal waters, featuring 1-foot contours, depth markers, and points of interest.
• One-Boat Network Compatibility: Seamlessly integrates with Minn Kota trolling motors and shallow water anchors, allowing control from the console, remote app, or foot pedal for comprehensive boat management.
• Advanced Waypoint Management: Syncs up to 10,000 waypoints with customizable icons and color-coding for easy organization and quick access.

Technical Specifications

• Display Size: 9 inches (diagonal)
• Display Resolution: 1280 x 720 pixels
• Transducer Included: XM 14 HW CMSI T
• Sonar Technology: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
• GPS: Built-in GPS with Humminbird Basemap
• Networking: One-Boat Network, Ethernet Networking, NMEA 2000
• Connectivity: Bluetooth, Ethernet, NMEA 2000
• Power Supply: 12V DC
• Operating Temperature: -20°F to 160°F (-29°C to 71°C)
• Storage Temperature: -30°F to 180°F (-34°C to 82°C)
• Waterproof Rating: IPX7

Materials

• Housing: High-strength plastic with anti-glare coating
• Display: Tempered glass with anti-glare treatment

Dimensions

• Length: 15.9 cm (6.26 inches)
• Height: 29.69 cm (11.69 inches)
• Width: 8.38 cm (3.3 inches)
• Weight: 1.94138 kg (4 lb 4.48 oz)

Compatibility Information

• Chart Compatibility: LakeMaster®, CoastMaster®, Navionics®
• Imaging Compatibility: MEGA Live Imaging, MEGA 360 Imaging, MEGA Side Imaging+, MEGA Down Imaging+
• Networking Compatibility: One-Boat Network, Ethernet Networking, NMEA 2000
