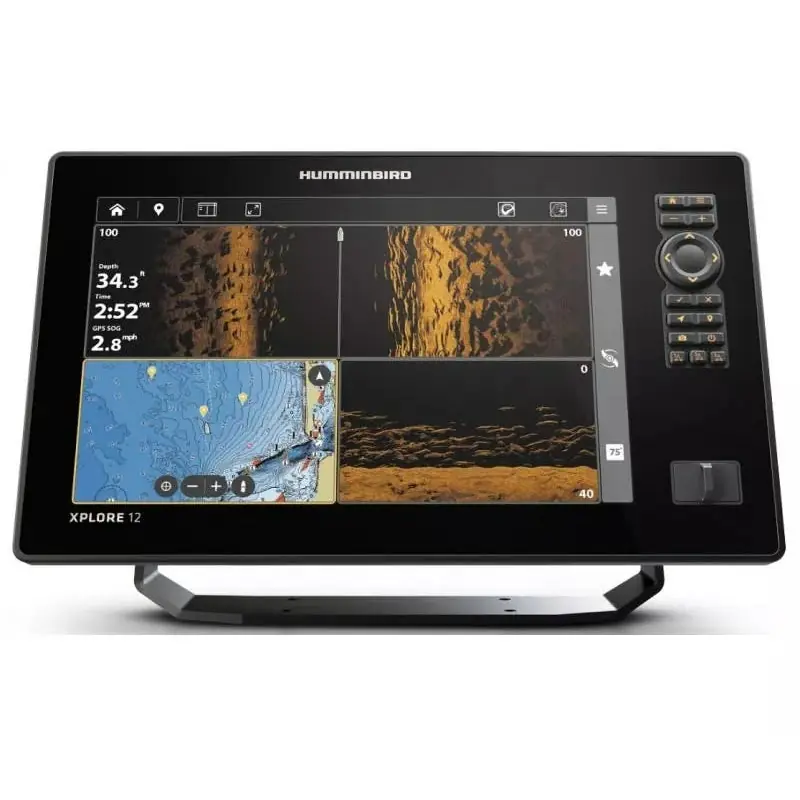

The Humminbird XPLORE 12 CMSI+ Fish Finder is a high-performance GPS fishfinder combo designed for discerning anglers seeking advanced technology and user-friendly features. It boasts a 12.1-inch ultra-clear display with a resolution of 1280 x 800 pixels, engineered for optimal visibility even in direct sunlight and when viewed through polarized sunglasses.
- Cross Touch® Interface: Offers intuitive control via touchscreen or keypad, providing quick access to key functions.
- MEGA Side Imaging+: Delivers crystal-clear side imaging up to 200 feet on either side of the boat, with 20% more detail and 60% more range capability than previous MEGA Side Imaging sonar.
- MEGA Down Imaging+: Provides unprecedented underwater clarity down to 200 feet below the boat, with 20% more detail and 60% more depth capability than previous MEGA Down Imaging sonar.
- Dual Spectrum CHIRP Sonar: Offers two search modes—Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail—enabling highly detailed fish arches and clear views of fish-holding structures.
- Internal GPS and Humminbird Basemap: Includes enhanced basemaps with charts of over 10,000 lakes and coastal coverage for the continental U.S., featuring depth contours, buoys, hazards, and more.
- Premium Chart Compatibility: Supports optional charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as compatible Navionics® charts.
- AutoChart Live: Allows creation of real-time maps of fishing spots, including depth contours, bottom hardness, and vegetation, with eight hours of built-in recording time.
- One-Boat Network Compatibility: Seamlessly integrates with Minn Kota and Cannon products, enabling control of trolling motors, anchors, and more directly from the fishfinder.
Technical Specifications
- Display Size: 12.1 inches (diagonal)
- Display Resolution: 1280 x 800 pixels
- Sonar Capabilities: MEGA Side Imaging+®, MEGA Down Imaging+®, Dual Spectrum CHIRP
- CHIRP Frequencies Supported: Full: 150-220 kHz at 25/42 degrees; Narrow: 180-240 kHz at 25 degrees; Wide: 140-200 kHz at 42 degrees
- Depth & Range: MEGA Side Imaging+: Range up to 800 ft (244 m) at 455 kHz; 400 ft (122 m) at 1100-1200 kHz; MEGA Down Imaging+: Depth up to 400 ft (122 m) at 455 kHz; 200 ft (61 m) at 1125-1225 kHz
- Connectivity: Wi-Fi, NMEA 2000®, Bluetooth®, Ethernet
- Memory Card Slots: Dual Micro SD
- Waterproof Rating: IPX7
- Power Input: 10-20 volts
- Power Output: Peak-to-Peak: 8000 Watts; RMS: 1000 Watts
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- LakeMaster Compatibility: Yes
- CoastMaster Compatibility: Yes
- Navionics Compatibility: Yes
- Heading Sensor GPS Compatibility: Yes
- Upgradable Software: Yes
Materials
Plastic housing with anti-glare, edge-to-edge screen display
Dimensions
- Length: 21.49 cm (8.46 inches)
- Height: 35.94 cm (14.15 inches)
- Width: 8.64 cm (3.4 inches)
Compatibility Information
- MEGA Live Imaging+ & MEGA 360 Compatible: Yes
- One-Boat Network Compatibility: Yes
