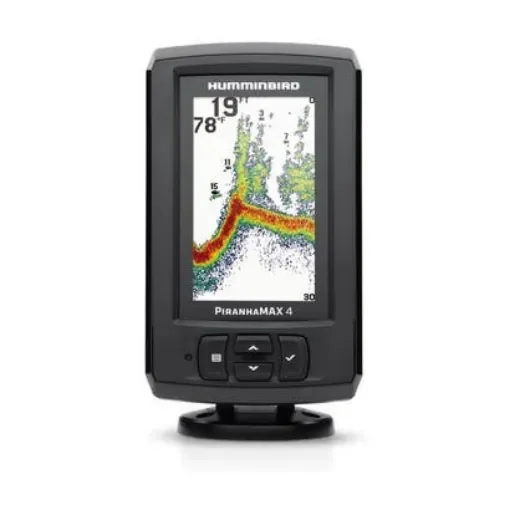

Key Features:
- Dual Beam Sonar: Offers narrow and wide beam options for detailed imaging or broader coverage, aiding in the identification of fish, structures, and underwater contours.
- Tilt and Swivel Mount: Allows for quick adjustments to the viewing angle, ensuring optimal screen visibility.
- Fish ID+: Simplifies fish identification by displaying fish symbols on the screen.
- Fish Alarms: Alerts users to the presence of fish within the sonar's range.
- Depth Alarms: Notifies when a preset depth is reached, useful for navigation and fishing.
- Zoom Functionality: Enables focused viewing of specific underwater areas for detailed analysis.
- Built-in Temperature Sensor: Provides real-time water temperature readings, essential for understanding fish behavior.
Technical Specifications:
- Display Size: 4.3 inches diagonal
- Display Resolution: 480 x 272 pixels
- Display Colors: 256-color TFT
- Sonar Frequencies: 200 kHz and 455 kHz
- Sonar Coverage: 28° and 16° at -10dB
- Power Output: 300 Watts RMS, 2400 Watts Peak-to-Peak
- Depth Capability: Up to 600 feet at 200 kHz, 320 feet at 455 kHz
- Power Input: 10.8-20 VDC
- Power Draw: 180 mA
- Mounting Type: Gimbal mount
- Transducer Included: XNT 9 28 T transom-mount transducer
- Waterproof Rating: IPX7
- Temperature Sensor: Built-in
- Warranty: 1-Year Limited Warranty
Materials:
The PiranhaMAX 4 Fish Finder is constructed with durable materials suitable for marine environments, ensuring longevity and reliability.
Dimensions:
- Unit Dimensions: 3.9 inches (W) x 7.3 inches (H) x 3.6 inches (D)
- Mount Dimensions: 3.91 inches (W) x 7.34 inches (H) x 3.62 inches (D)
Compatibility Information:
The PiranhaMAX 4 is compatible with various Humminbird accessories, including mounting brackets and in-dash mounting kits. However, it does not support GPS chartplotting or LakeMaster compatibility.
