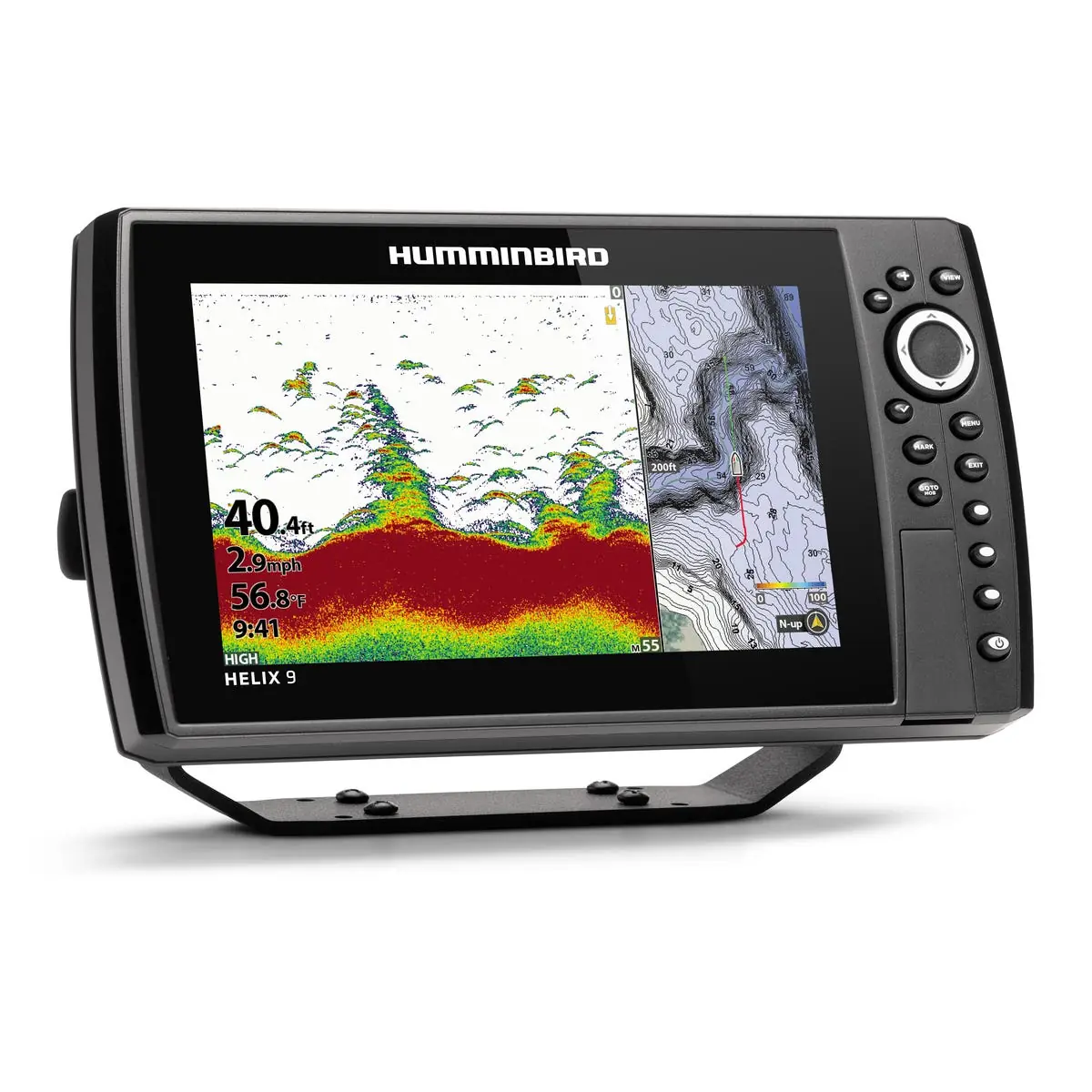

The Humminbird HELIX 9 G4N XD is a high-performance sonar and GPS combo designed for deep-water fishing enthusiasts. It features a 9-inch high-definition color display, providing clear and detailed imaging in various lighting conditions.
- Dual Spectrum CHIRP Sonar: Offers two search modes—Wide Mode for maximum coverage and Narrow Mode for detailed imaging—enabling precise fish detection and bottom structure mapping.
- SH-A04T Transducer: Equipped with a deep-water transducer capable of operating at depths exceeding 300 meters, utilizing 50 kHz for deep-water exploration and 200 kHz for shallower depths.
- Internal GPS with Humminbird Basemap: Provides accurate navigation with preloaded charts of over 10,000 lakes and coastal coverage for the continental U.S., enhancing fishing and boating experiences.
- AutoChart Live: Allows real-time mapping of fishing spots, including depth contours, bottom hardness, and vegetation, with eight hours of built-in recording time.
- Connectivity: Supports Ethernet networking, Bluetooth®, NMEA 2000®, and Wi-Fi, ensuring compatibility with the One-Boat Network™, which integrates Humminbird, Minn Kota, and Cannon products for comprehensive control.
Technical Specifications:
- Display Size: 9 inches (diagonal)
- Display Resolution: 1024 x 600 pixels
- Sonar Frequencies: 50 kHz, 200 kHz, 455 kHz, 800 kHz, 1.2 MHz
- Depth Capability: Up to 1,200 feet with standard transducer; up to 3,500 feet with optional 50 kHz transducer
- Power Output: 1,000 Watts RMS
- Power Input: 10.8-20 VDC
- Networking: Ethernet, Bluetooth®, NMEA 2000®, Wi-Fi
- Memory Card Slots: Dual Micro SD
- Compatible Charts: Humminbird LakeMaster®, CoastMaster™, Navionics® Gold/HotMaps®, Navionics® Platinum+
- Dimensions (H x W x D): 12.00” x 7.0” x 4.13”
- Weight: 9.9 lbs (4.5 kg)
Materials:
- Housing: Durable, waterproof construction with an IPX7 rating
- Display: High-definition color screen with anti-glare coating
Compatibility Information:
- One-Boat Network™: Compatible with Minn Kota i-Pilot Link, Minn Kota Talon/Raptor, Cannon Optimum downriggers, and other Humminbird devices
- Chart Compatibility: Supports Humminbird LakeMaster®, CoastMaster™, Navionics® Gold/HotMaps®, Navionics® Platinum+
