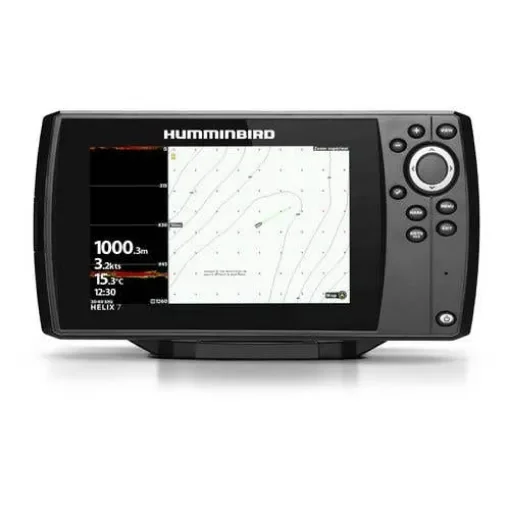

The Helix 7 G4 CHIRP XD (Deep Water) is a multifunctional sonar and GPS combo unit designed for anglers seeking advanced features and deep-water capabilities.
- Dual Spectrum CHIRP Sonar: Offers two search modes—Wide Mode for maximum coverage and Narrow Mode for detailed imaging—providing clear views of fish and underwater structures.
- Extreme Depth Transducer: Equipped with the SH-A04T EXTREME DEPTH transducer, it enables depth probing beyond 300 meters, with frequencies of 50 KHz (deep water) and 200 KHz (up to 100 meters).
- AutoChart Live: Allows real-time mapping of fishing spots, including depth contours, bottom hardness, and vegetation, with eight hours of built-in recording time.
- Internal GPS and Humminbird Basemap: Provides a clear view of underwater terrain and surrounding points of interest, including charts of over 10,000 lakes and coastal coverage for the continental U.S.
- Compatibility: Supports premium chart options from Humminbird's LakeMaster® and CoastMaster™ products, as well as compatible Navionics® charts.
Technical Specifications:
- Display: 7-inch high-definition TFT color screen with a resolution of 1024 x 600 pixels.
- Transducer: SH-A04T EXTREME DEPTH transducer with dual beams at 20° (200 KHz) and 74° (50 KHz).
- Power Output: 4000 W peak-to-peak (500 W RMS).
- Waterproof Rating: IPx7.
- GPS Interface: Internal WAAS GPS antenna.
- Card Reader: Micro SD slot compatible with AutoChart Live, Humminbird CoastMaster/LakeMaster, Navionics+, and other micro SD cards.
- Waypoints and Routes: 2500 waypoints, 45 routes, and 50 tracks.
- Dimensions:
- Unit: 270 x 160 x 100 mm.
- Flush Mount: 270 x 138 x 25 mm.
- Weight: Approximately 2.8 kg.
Materials: Constructed with durable materials suitable for marine environments, ensuring longevity and reliability.
