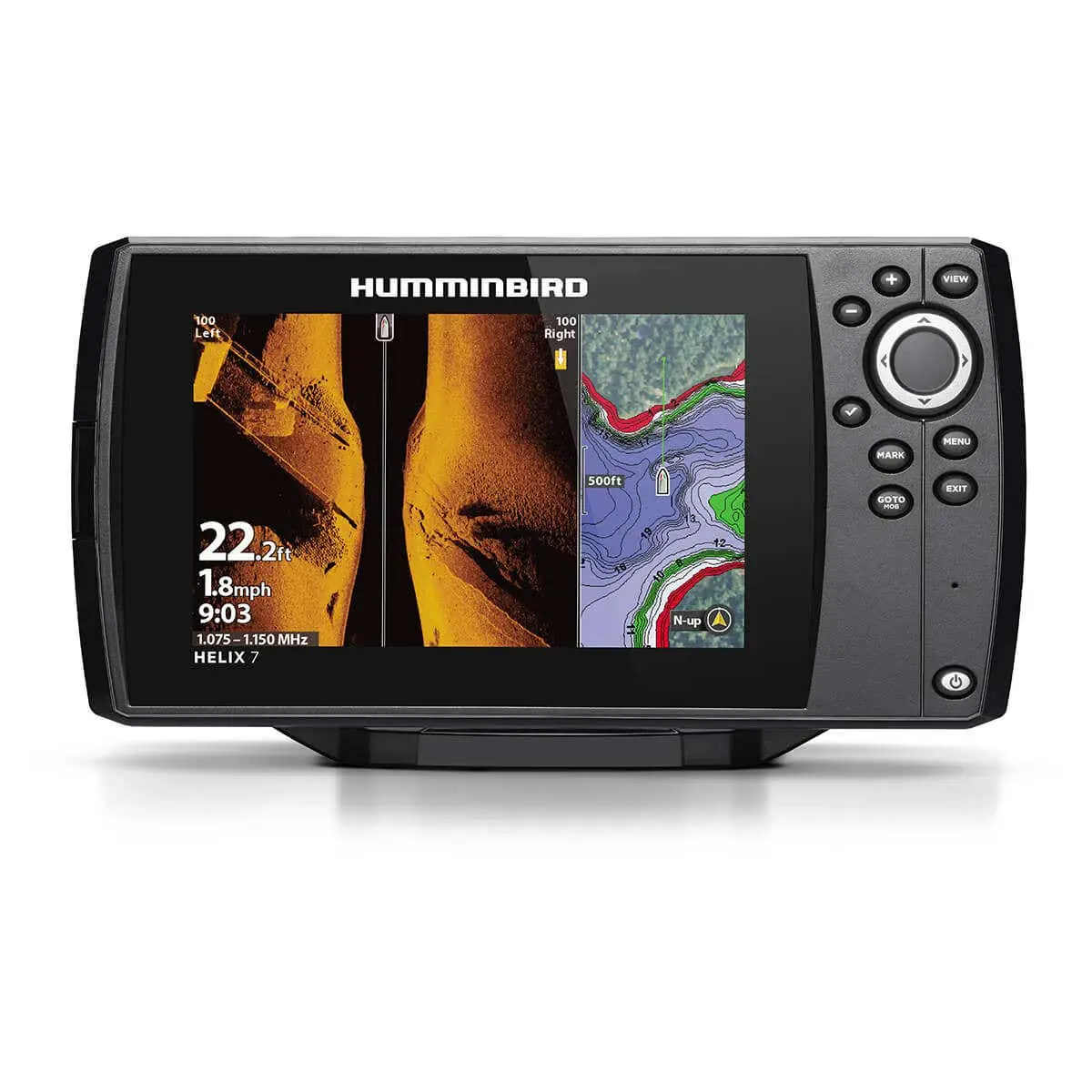

The Humminbird HELIX 7 CHIRP MEGA SI GPS G4N Fish Finder is a high-performance device designed for anglers seeking advanced sonar and navigation capabilities. It features a 7-inch high-definition display, providing clear and detailed views of underwater structures and fish.
- MEGA Side Imaging: Offers crystal-clear imaging up to 125 feet on either side of the boat, delivering up to 3X more detail than standard Side Imaging sonar.
- MEGA Down Imaging: Provides unprecedented underwater clarity with coverage down to 125 feet below the boat, offering up to 3X more detail than standard Down Imaging sonar.
- Dual Spectrum CHIRP Sonar: Delivers highly detailed fish arches and a clear view of fish-holding structures and the bottom. It offers two search modes: Wide Mode for maximum coverage and Narrow Mode for focusing on the slightest detail.
- Internal GPS and Humminbird Basemap: Includes charts of over 10,000 lakes and coastal coverage for the continental U.S., helping anglers navigate with confidence.
- AutoChart Live: Allows creation of real-time maps of fishing spots, mapping depth contours, bottom hardness, and vegetation as the boat moves. Comes with eight hours of built-in recording time and is compatible with AutoChart Zero Line SD cards for virtually endless mapping capacity.
- One-Boat Network Compatible: Seamlessly integrates with other Humminbird and Minn Kota products, unlocking more features and capabilities for anglers.
- Ethernet Networking: High-speed Ethernet allows connection of multiple fish finders and add-on technologies like Minn Kota i-Pilot Link and Humminbird CHIRP Radar.
- Bluetooth: Enables wireless communication with compatible Talon and Raptor shallow water anchors, wireless software updates from the Humminbird FishSmart App, and display of smartphone notifications on the Humminbird device.
- NMEA 2000 Networking Built-In: Connects to an accessory NMEA 2000 network for additional information, including boat performance, weather, and water conditions.
Technical Specifications:
- Display Size: 7 inches (diagonal)
- Display Pixel Matrix: 1024H x 600V
- Sonar Standard: Dual Spectrum CHIRP, MEGA Down Imaging, MEGA Side Imaging
- Sonar Coverage: 20°, 42°, 60°, and (2) 86° at -10dB
- Sonar Optional: 53 kHz, 50/Low Airmar CHIRP
- CHIRP Frequencies Supported: 83/200 (75-155/130-250 kHz), Full Mode (150-220 kHz), Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz)
- Sonar Frequencies Supported: 50/83/200/455/800 kHz & 1.2 MHz
- Depth Sonar: 1,200 ft (standard transducer), 3,500 ft (optional 50 kHz)
- Cartography Brand: Humminbird/Navionics
- Included Transducer: XNT-9-HW-MSI-150-T
- Touchscreen: No
- Transducer Included: Yes
Materials: The device is constructed with durable materials suitable for marine environments, ensuring longevity and resistance to corrosion.
Dimensions:
- Length: 10.54 inches (26.77 cm)
- Height: 5.44 inches (13.82 cm)
- Width: 3.08 inches (7.82 cm)
Compatibility Information: The HELIX 7 CHIRP MEGA SI GPS G4N is compatible with various Humminbird and Minn Kota products, including the One-Boat Network, Ethernet networking, Bluetooth, and NMEA 2000 networking. It also supports premium charts from Humminbird's LakeMaster® and CoastMaster™ products, as well as compatible Navionics® charts.
