- Down Imaging: Offers a clear view of underwater structures, allowing you to see timber, brush, bridge pilings, rocks, and other structures with great detail.
- DualBeam PLUS Sonar: Combines two beams for precise details and a generous coverage area, helping you identify fish, structure, and contours. Use the narrow beam for high-accuracy returns and the wide beam for a larger search area. Beams can be displayed separately, side by side, or blended together for a complete picture.
- SwitchFire Sonar: Allows you to control how your sonar returns appear with two display modes. Add or remove detail, account for water depth, temperature, and turbulence, and even view lure presentations—all at the push of a button.
Technical Specifications:
- Display Size: 5 inches (diagonal)
- Display Pixel Matrix: 800 x 480 pixels
- Transducer Included: XNT 9 DI T
- Sonar Coverage: 20° & 60° at -10 dB
- Sonar Frequencies Supported: 83 kHz and 200 kHz
- Sonar Depth Capability: Up to 1,500 feet with the standard transducer
- Power Input: 10.8-20 VDC
- Power Output: 4,000 W (Peak-to-Peak) and 500 W (RMS)
- Compatible With: AIS, AutoPilot
- Memory Card Slot: None
- Interface: Keypad control
- Mounting Options: Transom mount
- Dimensions: Standard mount size: 7.55 x 4.64 x 3.30 inches; Optional mount size: 7.55 x 4.28 x 1.13 inches
- Weight: Approximately 3.6 lbs (1.63 kg)
The device is constructed with durable materials suitable for marine environments, ensuring longevity and reliable performance. Specific material details are not provided in the available sources.

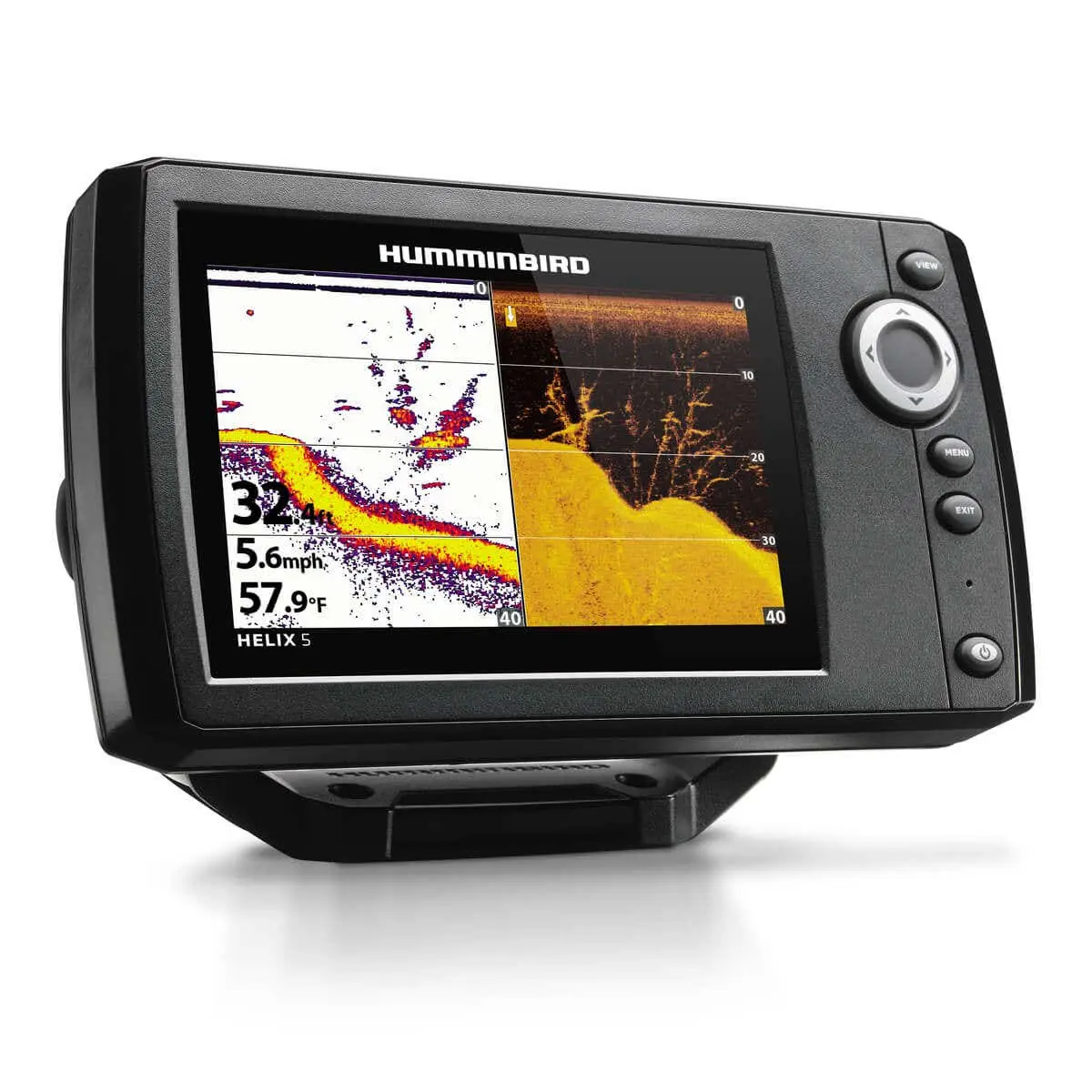

The HELIX 5 DI G2 is compatible with AIS and AutoPilot systems, enhancing navigation and control capabilities. It does not include a memory card slot, so external mapping options are not supported.
