Portholes
These portholes correspond to the internal dimensions of the Opal range from Goiot.
- Made of satin-finished aluminium
- Grey glass, 10 mm thickness
- Perfect sealing with its robust monobloc frame
- One model covers a wide thickness to be tightened: 5 to 33 mm
- Optimal visibility thanks to the handle placed recessed from the glass
A double contact seal equips all Plastimo portholes. When closed, the first lip of the seal stops the water while the second contact point ensures final sealing.
The 46° inclination of the frame ensures water drainage to the outside, allowing installation on a sloped roof.
Easy installation with a reversible counter frame allowing coverage of a wide range of thickness to be tightened: 5 to 33 mm.
Closing system equipped with adjustable friction hinges. A unique and ergonomic handle allows one-handed opening. Moreover, it distributes pressure around the entire perimeter of the seal, thus ensuring better sealing.
| Model | Size | Reference | Internal dimensions mm | Internal dimensions in. | External dimensions mm | External dimensions in. | Radius mm | Radius in. | Weight kg |
|---|
| Rectangular | 00 | 63894 | 303 x 156 | 11.9 x 6.1 | 325 x 178 | 12.8 x 7 | 56 | 2.2 | 1.8 |
| Rectangular | 01 | 63895 | 347 x 171 | 13.7 x 6.7 | 369 x 193 | 14.5 x 7.6 | 56 | 2.2 | 2 |
| Rectangular | 02 | 63896 | 405 x 156 | 15.9 x 6.1 | 427 x 178 | 16.8 x 7 | 56 | 2.2 | 2 |

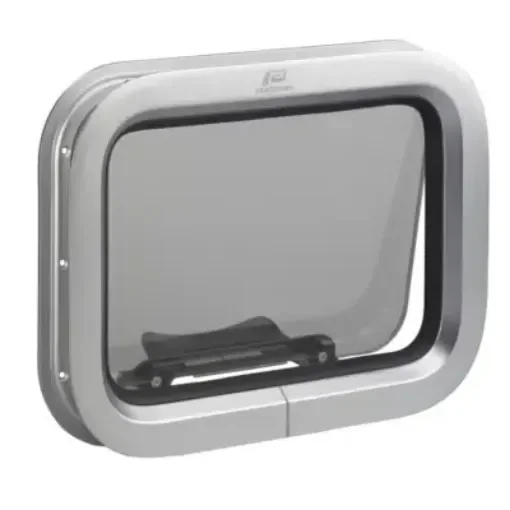

| Rectangular | 03 | 63887 | 429 x 171 | 16.9 x 6.7 | 451 x 193 | 17.8 x 7.6 | 56 | 2.2 | 2.7 |
| Rectangular | 04 | 63898 | 627 x 171 | 24.7 x 6.7 | 649 x 193 | 25.6 x 7.6 | 56 | 2.2 | 3.8 |
| Rectangular | 05 | 63899 | 429 x 244 | 16.9 x 9.6 | 451 x 266 | 17.8 x 10.5 | 56 | 2.2 | 3.4 |
| Rectangular | 50 | 63901 | 347 x 251 | 13.7 x 9.9 | 369 x 273 | 14.5 x 10.7 | 56 | 2.2 | 3 |
| Oval | 32 | 63900 | 375 x 175 | 14.8 x 6.9 | 397 x 197 | 15.6 x 7.8 | 56 | 2.2 | 2 |
| Navigation | Features | Opening | Frame | Installation | Onboard placement/Regulatory CE zone* |
|---|
| Coastal, offshore | Careful design, ergonomic handle, wide daylight opening | Glass | Profiled | Installation of the frame and counter plate inside | Zones IIb, III & IV - Deck, roof and cockpit zones |
*European standards CE 94/25 of 16 June 1996:
- Zone I: hull above the waterline
- Zone II: deck, roof, cockpit, transom
- Zone IIb: hull area not belonging to Zone I
- Zone III: superstructure, deck and cockpit
- Zone IV: cockpit and deck, rear faces of the superstructure
Features: Portholes
