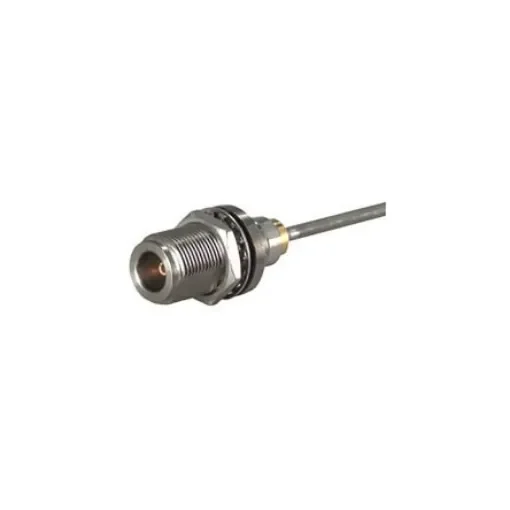

Huber+Suhner 24_N-50-3-51/19-_NE Series, Jack Panel Mount N Connector, 50O, Solder Termination, Straight Body
Reliable N Connector for coaxial applications with 50 Ohm impedance and durable design.
Manufacturer part number: 24_N-50-3-51/19-_NE
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 18 GHz Frequency range DC to 12 GHz Return loss 30 dB Centre contact plugged Outer contact soldered Weight 0.0484 kg Operating temperature -55 °C to 70 °C
