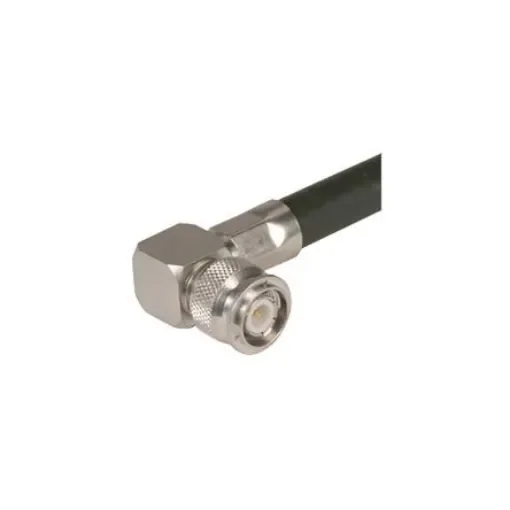

Huber+Suhner 16_TNC-50-7-17/133_NE Series, Plug Cable Mount TNC Connector, 50O, Crimp Termination, Right Angle Body

Coaxial Connector Type = TNC Connector
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Crimp
Body Orientation = Right Angle
Cable Type = Coaxial
Bulkhead = No
Polarity = Normal
Series = 16_TNC-50-7-17/133_NE

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 11 GHz Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz Return loss 38 dB 26.8 dB 26 dB Centre contact soldered Outer contact crimped Weight 0.0364 kg Operating temperature -65 °C to 165 °C
