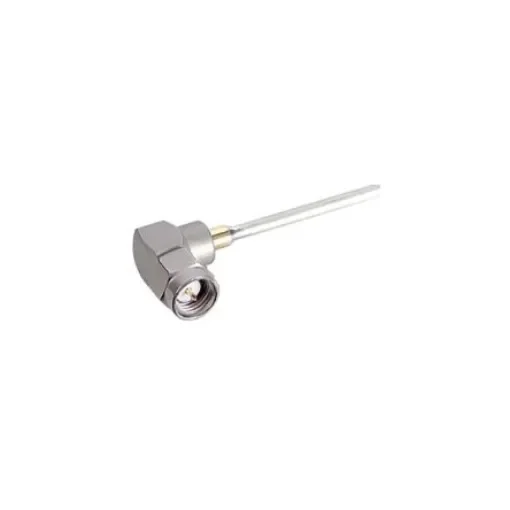

Huber+Suhner 16_SMA-50-2-100/199_NH Series, Plug Cable Mount SMA Connector, Solder Termination, Right Angle Body
Reliable Huber+Suhner SMA connector with right angle design for efficient signal transmission.
Manufacturer part number: 16_SMA-50-2-100/199_NH
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coaxial Connector Type = SMA Connector
Mounting Type = Cable Mount
Termination Method = Solder
Body Orientation = Right Angle
Cable Type = Coaxial
Bulkhead = No
Polarity = Normal
Series = 16_SMA-50-2-100/199_NH
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 26.5 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 26.5 GHz Centre contact plugged Outer contact soldered Weight 0.0056 kg Operating temperature -65 °C to 165 °C
