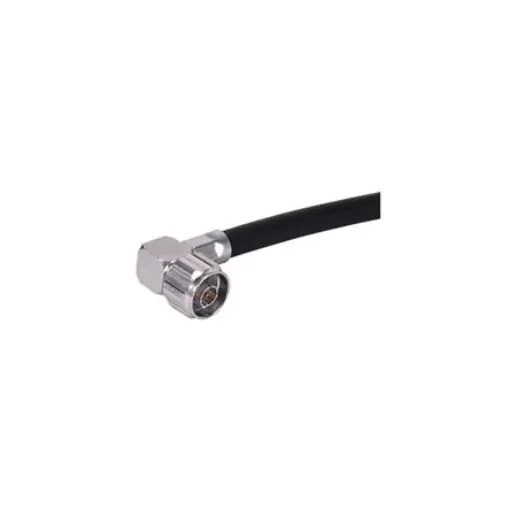

Huber+Suhner 16_N-50-7-77/133_NE Series, Plug Cable Mount N Connector, 50O, Crimp Termination, Right Angle Body
Reliable Huber+Suhner N Connector with 50 Ohm impedance and right angle design for easy installation.
Manufacturer part number: 16_N-50-7-77/133_NE
Availability: Out of stock
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coaxial Connector Type = N Connector
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Crimp
Body Orientation = Right Angle
Cable Type = Coaxial
Bulkhead = No
Body Plating = Brass
Polarity = Normal
Series = 16_N-50-7-77/133_NE
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 11 GHz Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz Return loss 27.5 dB 25.6 dB 24.8 dB Centre contact soldered Outer contact crimped Weight 0.046708 kg Operating temperature -65 °C to 165 °C
