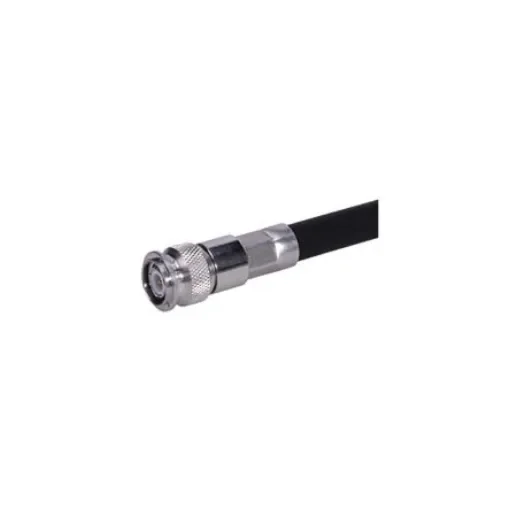

Huber+Suhner 11_TNC-50-7-18/133_NE Series, Plug Cable Mount TNC Connector, 50O, Crimp Termination, Straight Body

Coaxial Connector Type = TNC Connector
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Crimp
Body Orientation = Straight
Cable Type = Coaxial
Bulkhead = No
Body Plating = Brass
Polarity = Normal
Series = 11_TNC-50-7-18/133_NE

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 11 GHz Frequency range DC to 2 GHz 2 to 4 GHz 4 to 6 GHz Return loss 28 dB 26 dB 25 dB Centre contact crimped Outer contact crimped Weight 0.033135 kg Operating temperature -65 °C to 165 °C
