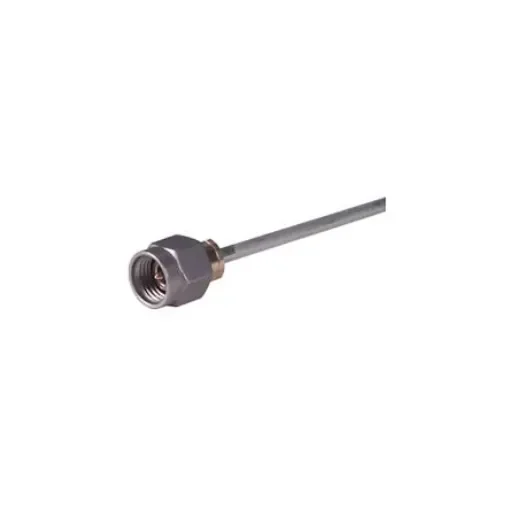

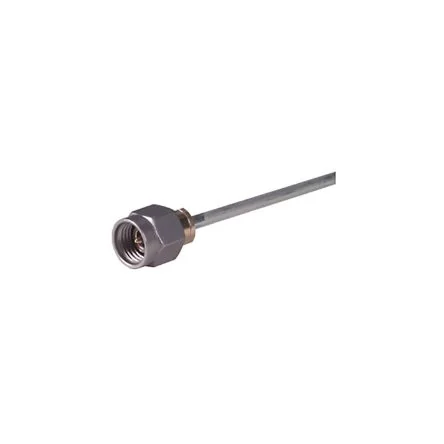

Huber+Suhner 11_SK-50-2-56/119_NE Series, Plug Cable Mount SK Connector, 50O, Solder Termination, Straight Body

Coaxial Connector Type = SK Connector
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Solder
Body Orientation = Straight
Cable Type = Coaxial
Bulkhead = No
Polarity = Normal
Series = 11_SK-50-2-56/119_NE

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 40GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 40 GHz Frequency range DC to 40 GHz Return loss 20 dB Centre contact soldered Outer contact soldered Weight 0.0023 kg Operating temperature -40 °C to 125 °C
