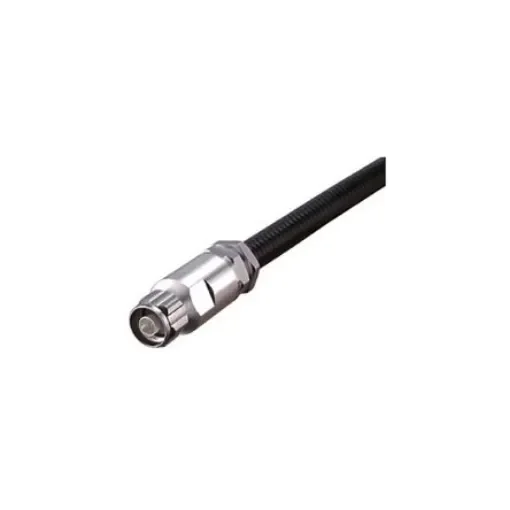

Huber+Suhner 11_N-50-9-9/033_-E Series, Plug Cable Mount N Connector, 50O, Clamp Termination, Straight Body
Reliable Huber+Suhner N Connector for 50 Ohm coaxial applications.
Manufacturer part number: 11_N-50-9-9/033_-E
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coaxial Connector Type = N Connector
Mounting Type = Cable Mount
Impedance = 50O
Body Orientation = Straight
Cable Type = Coaxial
Polarity = Normal
Series = 11_N-50-9-9/033_-E
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 11 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 11 GHz Frequency range DC to 3 GHz Return loss = 30 dB Intermodulation = Static -155 dBc (2 x 43 dBm carrier) Centre contact plugged Outer contact clamped Weight 0.1117 kg Operating temperature -40 °C to 85 °C
