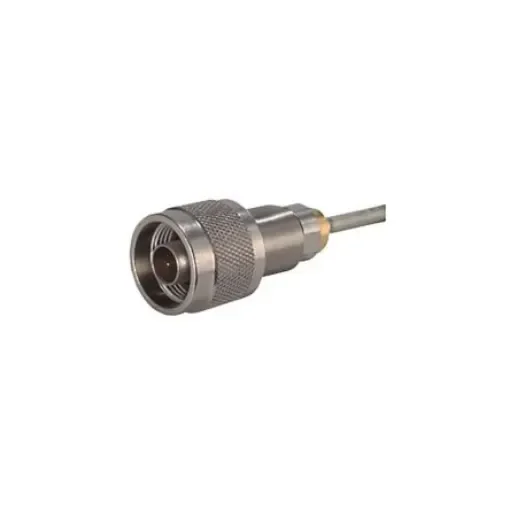

Huber+Suhner 11_N-50-3-51/133_NE Series, Plug Cable Mount N Connector, 50O, Solder Termination, Straight Body

Coaxial Connector Type = N Connector
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Solder
Body Orientation = Straight
Cable Type = Coaxial
Bulkhead = No
Body Plating = Brass
Polarity = Normal
Series = 11_N-50-3-51/133_NE

The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 18 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 18 GHz Centre contact plugged Outer contact soldered Weight 0.0435 kg Operating temperature -55 °C to 70 °C
