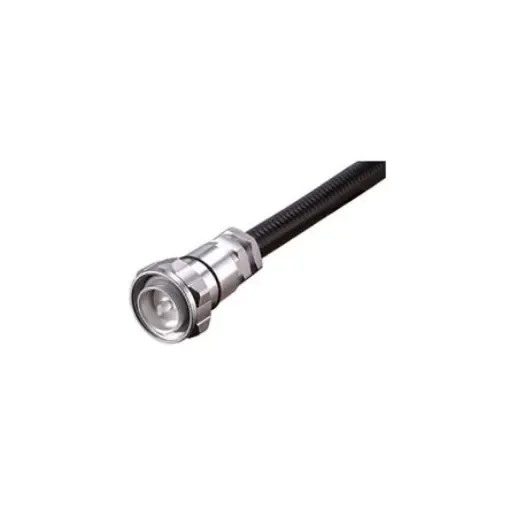

Huber+Suhner 11_716-50-9-9/033_-E Series, Plug Cable Mount, 50O, Clamp Termination, Straight Body
Durable Huber+Suhner coaxial connector designed for efficient signal transmission.
Manufacturer part number: 11_716-50-9-9/033_-E
Availability: Out of stock
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
Termination Method = Clamp
Bulkhead = No
Body Plating = Brass
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 7.5 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 7.5 GHz Frequency range DC to 2.5 GHz 2.5 to 3 GHz Return loss = 30 dB = 27 dB Intermodulation = Static -155 dBc (2 x 43 dBm carrier) Centre contact plugged Outer contact clamped Weight 0.1264 kg Operating temperatu
