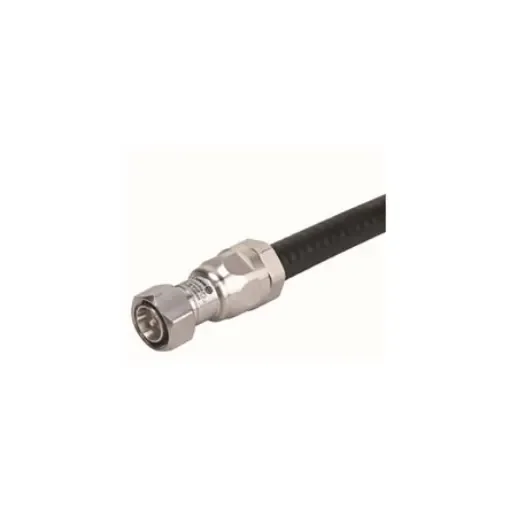

Huber+Suhner 11_4310-50-12-X2/033_-E Series, Plug Cable Mount, 50O, Clamp Termination, Straight Body
Reliable Huber+Suhner coaxial connector for optimal 50 Ohm signal transmission.
Manufacturer part number: 11_4310-50-12-X2/033_-E
Gender = Male
Mounting Type = Cable Mount
Impedance = 50O
Termination Method = Clamp
Body Orientation = Straight
Cable Type = Coaxial
Bulkhead = No
Body Plating = Brass
Polarity = Normal
Series = 11_4310-50-12-X2/033_-E
The Huber & Suhner coaxial connector has 50 Ohm impedance. The electrical cable that has an inner conductor surrounded by a tubular insulating layer, surrounded by a tubular conducting shield. It has 12 GHz interface frequency and the body made from brass material. Coaxial cable is durable, easy to install and are designed to carry signals over long distances.Impedance 50 O Interface frequency max. 12 GHz Frequency range DC to 2.7 GHz 2.7 to 3.7 GHz Return loss 30 dB 28 dB Centre contact plugged Outer contact clamped Weight 0.097 kg Operating temperature -55 °C to 90 °C
