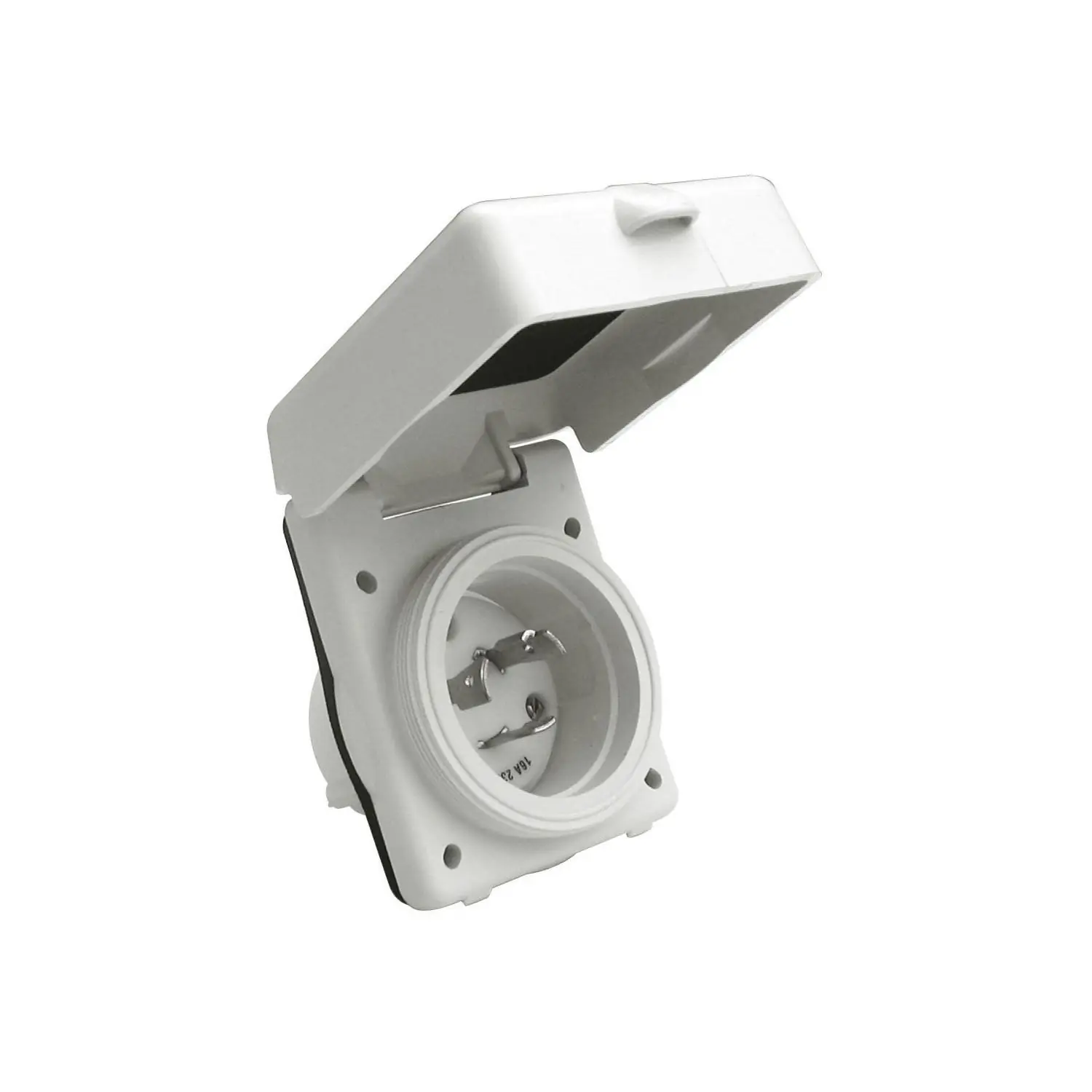

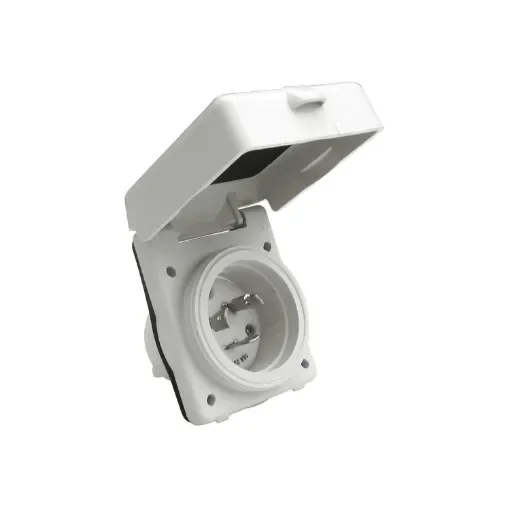

Key Features:
- Marine Grade Construction: Designed for marine environments, offering enhanced durability and resistance to corrosion.
- Twist-Lock® Mechanism: Provides a secure and reliable connection, preventing accidental disconnections.
- Self-Closing Cover: Protects the inlet from environmental elements when not in use.
- Thermoset Contact Carrier: Ensures high resistance to electrical tracking and withstands higher temperatures resulting from overload or arcing.
- Corrosion-Resistant Rear Enclosure: Enhances the longevity and reliability of the device in harsh marine conditions.
Technical Specifications:
- Amperage Rating: 16 A
- Voltage Rating: 230V AC
- Phase: Single Phase
- Number of Poles: 2-Pole
- Number of Wires: 3-Wire Grounding
- Dielectric Strength: Withstands 3000V Minimum
- Environmental Conditions: Watertight per IEC 60309-1
- Ingress Protection Rating: IP56 Suitability
- Operating Temperature Range: -40°C to 75°C
- Wire Size Compatibility: #14 AWG to #12 AWG
Materials:
- Housing: Non-metallic composite material
- Contact Carrier: Thermoset polyester
- Sealing Gasket: Solid neoprene
- Locking Ring: Reinforced thermoplastic polyester
Dimensions:
- Length: Approximately 9.7 cm (3.83 inches)
- Width: Approximately 8.6 cm (3.4 inches)
- Height: Approximately 8.8 cm (3.47 inches)
Compatibility Information:
This inlet is compatible with Hubbell's Twist-Lock® connectors and is suitable for marine shore power applications requiring a 16A 230V connection.
