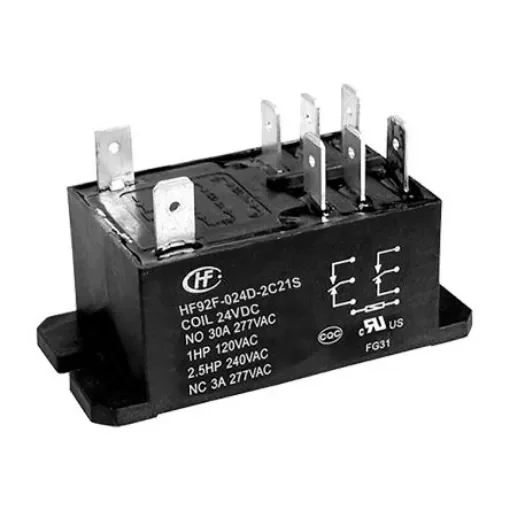

Hongfa Europe GMBH Flange Mount Power Relay, 24V dc Coil, 30A Switching Current, DPDT - HF92F-024D-2C21S
The Hongfa Flange Mount Power Relay offers 30A switching capability with a 24V dc coil for reliable performance.
Manufacturer part number: HF92F-024D-2C21S
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Coil Voltage = 24V dc
Contact Configuration = DPDT
Mounting Type = Flange Mount
Switching Current = 30A
Number of Poles = 1
Latching = No
Terminal Type = Quick Connect
Maximum Switching Voltage AC = 277V
Length = 68.6mm
Coil Resistance = 350O
Coil Power = 1.7W
Life = 100000 operationsmm
Maximum Switching Power AC = 8.31 kVA
HF92F Miniature Intermediate Power Relays. HongFa HF92F series miniature high-power relays. The HF92F range feature industry standard 6.4 x 0.8 mm quick connect terminals in a plastic sealed flange mount housing. Features and Benefits. 30 A switching capability AC and DC coil options available 4 kV dielectric strength 3 mm contact gap Silver tin oxide terminals RoHS compliant
