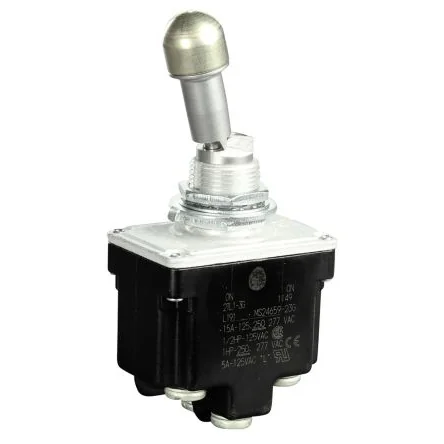

Honeywell Toggle Switch, Panel Mount, On-On, DPDT, Screw Terminal - 2TL1-3G

Contact Configuration = DPDT
Switch Operation = On-On
Contact Current Rating = 15 A @ 115 V ac, 20 A @ 28 V dc, 6 A @ 230 V ac
Mounting Type = Panel Mount
Terminal Type = Screw
Actuator Length = 17mm
Actuator Material = Metal, Plastic
Contact Material = Gold Plated Silver Alloy
Minimum Operating Temperature = -65°C

UL recognized, CSA certified, CE approved. Honeywell TL Series Toggle Switches. The TL series Micro Switch™ toggle switches feature pull-to-unlock toggle levers which help to prevent accidental operation (in order for the lever to change position it must be pulled 2.3mm). The have been constructed with high strength, temperature resistant, non-tracking case material and silver cadmium contacts. Qualified to MIL-DTL-3950 Environment-proof sealing 1,2, and 4 pole circuitry Standard and pull-to-unlock levers 2 and 3 position, maintained and momentary toggle action Temperature range: -85 to +160 °F Completely sealed switching chamber Step-design case provides added space between terminals to help prevent shorting Potential Applications: Industrial machinery and equipment Military and commercial aviation Construction equipment Test instruments Agricultural machinery Process control Medical instrumentation
