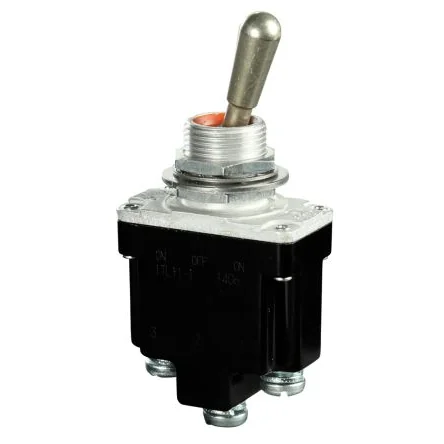

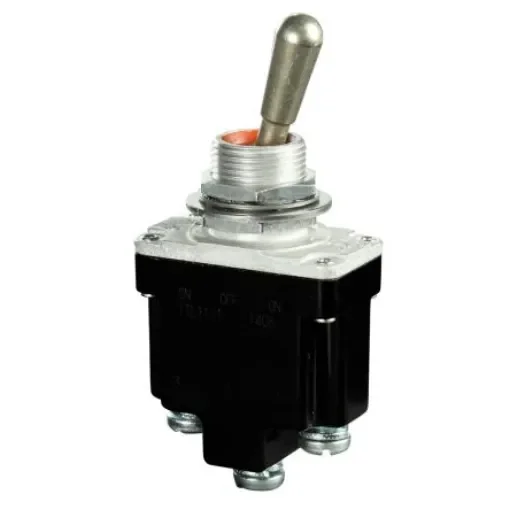

Honeywell Toggle Switch, Bushing Mount, On-Off-On, SPDT, Screw Terminal, 125V ac - 1TL1-1

Contact Configuration = SPDT
Switch Operation = On-Off-On
Contact Current Rating = 15 A
Mounting Type = Bushing
Terminal Type = Screw
Illuminated = No
Panel Cut Out Width = 11.4mm
Panel Cut Out Diameter = 12.4mm
Actuator Length = 17mm
Voltage Rating = 125 V ac, 250 V ac, 277V ac
Contact Material = Silver Alloy, Gold Platedmm
Maximum Operating Temperature = +71°C

MICRO SWITCH TL Series Toggle Switch, Single Pole Double Throw (SPDT) 3 Position (On - Off - On), Screw Terminals, Standard Lever. Quality construction features include a bonded seal between the toggle lever and bushing, and between the cover and case. The robust design of the TL Series toggle is well-suited for many military, aerospace and other demanding applications where reliability is essential. These applications include environments where the panels are subjected to mechanical shock, vibration, and temperature extremes as well as environments with dust, splashing or hose-directed water. TL Series toggle switches offer a variety of circuitry and pole options. A long history in military and aerospace applications has shown the TL Series toggle provides reliable performance with long operating life under the toughest conditions.Environment-proof sealing 1,2, and 4 pole circuitry Standard and pull-to-unlock levers 2 and 3 position, maintained and momentary toggle action Temperature range: -65 °C to 71 °C [-85 °F to 160 °F] Completely sealed switching chamber Step-design case provides added space between terminals to help prevent shorting Applications Industrial machinery and equipment Military and commercial aviation Construction equipment Test instruments Agricultural machinery Process control Medical instrumentation
