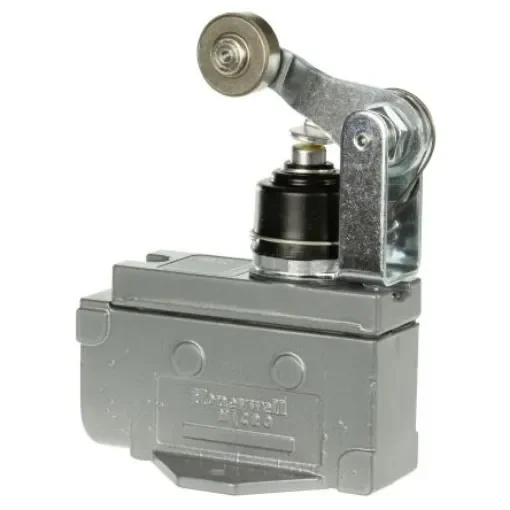

Honeywell Roller Lever Limit Switch, 1NC/1NO, IP65, SPDT, Die Cast Aluminium Housing, 480V ac ac Max, 15A Max - BZV7-2RN2-PG

Actuator Type = Roller Lever
Pole and Throw Configuration = SPDT
Normal State Configuration = 1NC/1NO
IP Rating = IP65
Maximum Current = 15A
Housing Material = Die Cast Aluminium
Maximum AC Voltage = 480V ac
Action Type = Snap Action

The Honeywell MICRO SWITCH E7/V7 Series Medium-Duty Limit Switches, Top Roller Arm Actuator, Adjustable with Steel Roller, 1NC 1NO SPDT Snap Action, PG13,5 conduit. MICRO SWITCH E7/V7 Series medium duty limit switches are designed for a wide variety of indoor and outdoor applications. The electrostatic applied epoxy coating to the aluminium housings enhances the durability of the product in most applications. The E7/V7 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element. The sealed (plungers with boots) E7 Series are preferred for applications where there could be exposure to liquid and/or particulate environments.Side or flange mount Reversible actuator facility Choice of conduit thread Rugged aluminium housing Temperature range -30 °C to 71 °C [ -22 °F to 160 °F] Wide choice of actuators Gang mount capability
