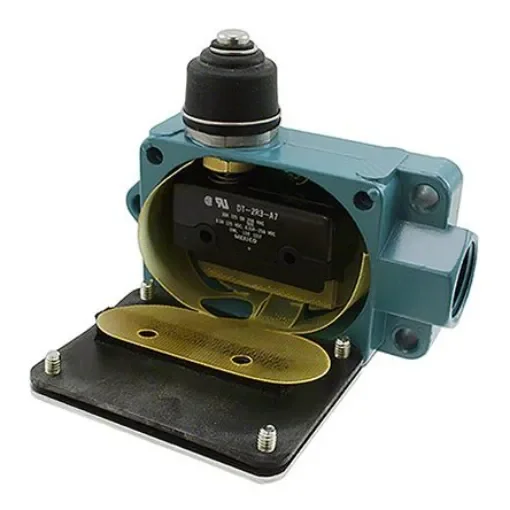

Honeywell Plunger Limit Switch, 2NO/2NC, DPDT, Die Cast Aluminium Housing, 250V ac Max, 10A Max - DTF2-2RN-LH

Actuator Type = Plunger
Pole and Throw Configuration = DPDT
Normal State Configuration = 2NO/2NC
Maximum Current = 10A
Housing Material = Die Cast Aluminium
Maximum AC Voltage = 250V
Maximum DC Voltage = 250V
Connection Type = 1/2 in NPT
Action Type = Snap Action
Length = 101.6mm
Minimum Operating Temperature = -32°C
Mounting Orientation = Vertical

DTF2 Medium Duty Limit Switches. The DTF2 limit switch series from Honeywell is designed for use within a medium duty environment. The elastomer boot on sealed actuator verions protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated "right" or "left," when looking at the nameplate. Cast aluminium housing
