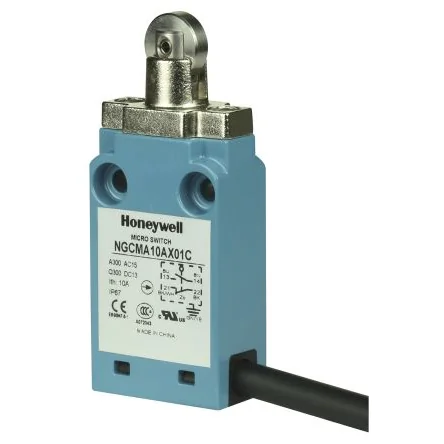

Honeywell NGC Series Roller Plunger Limit Switch, NO/NC, IP67, SPDT, Metal Housing, 240V ac Max, 6A Max - NGCMA10AX01C

Actuator Type = Roller Plunger
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP67
Maximum Current = 6A
Housing Material = Metal
Maximum AC Voltage = 240V
Maximum DC Voltage = 250V
Connection Type = Cable
Series = NGC
Action Type = Positive Break, Snap Action
Length = 30mm
Minimum Operating Temperature = -25°C
Mounting Orientation = PanelCycles

Honeywell NGC Series Micro Switch Compact Limit Switches. Honeywell ‘s MICRO SWITCH™ Compact Limit Switches, NGC Series, are a configurable platform of medium-duty switches that allow the customer to choose SPDT (single pole, double throw) or DPDT (double pole, double throw) circuitry while maintaining the same housing and mounting footprint throughout the NGC Series. The NGC Series can be configured more than 380,000 ways carries global approvals. The compact series limit switches are sealed to IP67 for potential use in indoor and outdoor applications. The Compact switches offer durable packaging allows for use in many harsh indoor or outdoor applications, providing performance confidence .The switches also allow design engineers to standardize on a single footprint while meeting a variety of electrical requirements. With two times the vibration (10 g) and shock (50 g) ratings of comparable competitive devices, the NGC Series can be implemented in the harshest of environmental conditions, providing enhanced reliability and repeatability Broader current capacity (10 A) than comparable devices allows for potential use in a wider set of applications, making platform standardization an easier task. SPDT or DPDT configurable circuitry Snap-action, positive-break contacts Silver alloy and gold plated contact options UL, CE, cUL, and CCC approvals NEMA 1, 4, 12, 13; IP67 sealing Metal and plastic housing options Cable and connector terminations Variety of heads and actuator levers POTENTIAL INDUSTRIAL APPLICATIONS Boom position detection Elevators and escalators Machine tools Mobile light towers Packaging equipment Rail doors Scissor lifts
