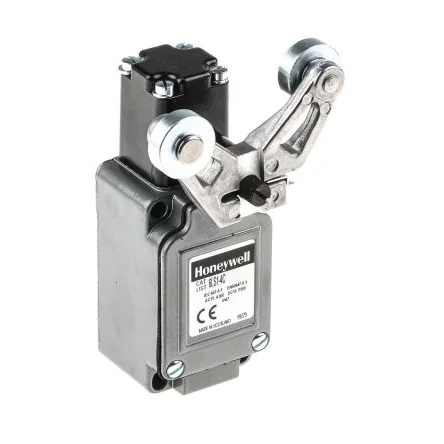

Honeywell LS Series Fork Roller Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 480V ac Max, 10A Max - 6LS1-4C

Actuator Type = Fork Roller Lever
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP67
Maximum Current = 10A
Housing Material = Die Cast Zinc
Maximum AC Voltage = 480V
Maximum DC Voltage = 550V
Series = LS
Action Type = Snap Action
Length = 116.6mm
Depth = 91.4mm
Operating Force = 0.33 Nm

EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300. See ‘Key characteristics ‘ table for details of contact rating. Maintained Contact Switch. This compact limit switch has a cast aluminium IP67 sealed casing capable of withstanding rugged industrial application. The maintained action yoke actuator has steel rollers on opposite sides of the arm. Robust aluminium housing Compact construction 2 circuit maintained double break basic switch Positive break NC contact Up to 10A, 480V a.c. Completely sealed to IP67 4 position adjustable head
