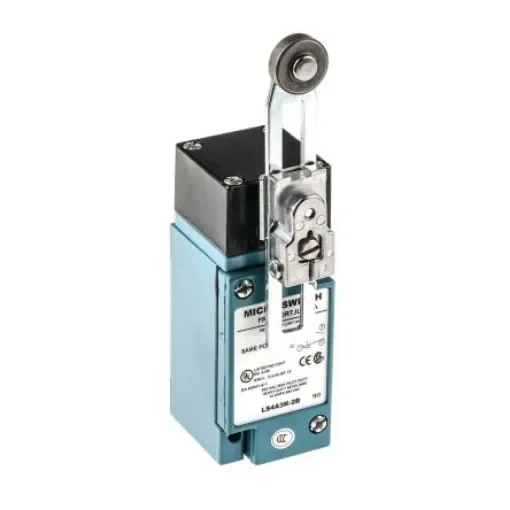

Honeywell HDLS Series Adjustable Roller Lever Limit Switch, NO/NC, IP67, SPDT, Die Cast Zinc Housing, 600V ac Max, 10A - LS4A3K-2B
Durable Honeywell HDLS limit switch with adjustable roller lever and IP67 rating for reliable performance.
Manufacturer part number: LS4A3K-2B
Availability: Out of stock
Free shipping
Only Ships to: France, Monaco, Italy For shipping outside these regions, please contact customer support.
Actuator Type = Adjustable Roller Lever
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP67
Maximum Current = 10A
Housing Material = Die Cast Zinc
Maximum AC Voltage = 600V
Maximum DC Voltage = 250V
Connection Type = M20
Series = HDLS
Action Type = Snap Action
Length = 106.7mm
Depth = 62mm
EN60947-5-1, IEC947-5-1, AC15, A300 or A600 , DC13, Q300. UL, CSA. Industrial Limit Switches. Unsurpassed sealing including standard viton shaft and diaphragm seals on rotary styles Excellent corrosion protection Rugged mechanical construction including heavy zinc alloy die cast head and body housing, all surfaces phosphate coated and epoxy painted external surfaces Metal anchors used in basic contact block for longer wear and electrical stability Chrome silicon compression spring for both high and low temperature applications Overall unsurpassed switched sealing NEMA 1, 3, 4, 6, 6P and 13 Ingress protection to IP67, Operating temperature -12°C to +121°C CE marked to low voltage directive EN60947-5-1
