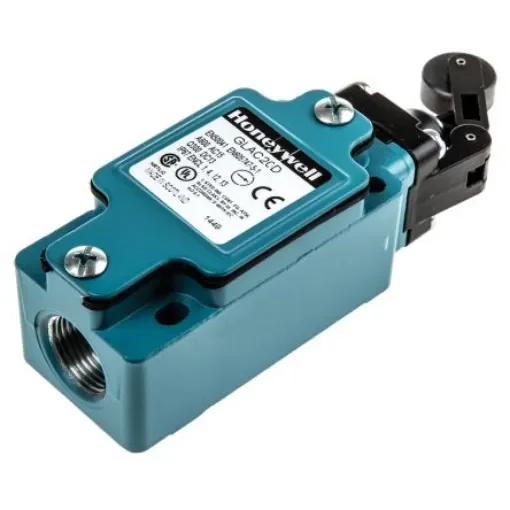

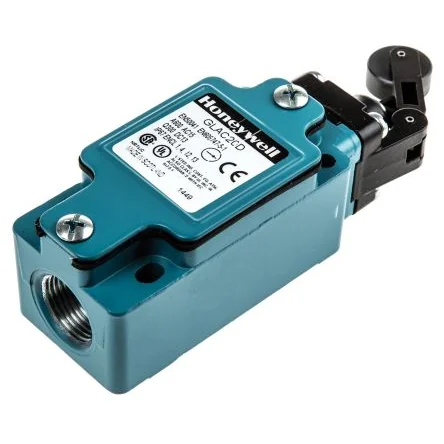

Honeywell GLA Series Roller Lever Limit Switch, 2NO/2NC, IP67, DPDT, Die Cast Zinc Housing, 600V ac Max, 6A Max - GLAC20D

Actuator Type = Roller Lever
Pole and Throw Configuration = DPDT
Normal State Configuration = 2NO/2NC
IP Rating = IP67
Maximum Current = 6A
Housing Material = Die Cast Zinc
Maximum AC Voltage = 600V
Maximum DC Voltage = 250V
Connection Type = M20
Series = GLA
Action Type = Snap Action
Length = 145.8mm
Minimum Operating Temperature = -25°C
Mechanical Life = 15000000Cycles

GLAC20D Limit SwitchModel GLAC20D is a double pole, double throw (DPDT) snap action limit switch. It features two normally open (NO) and two normally closed (NC) contacts. This limit switch has a 19 x 8 mm roller lever at the top of the unit. You can use roller lever actuator limit switches in applications where the cam laterally passes the switch. GLAC20D has a 20 mm conduit and operating torque of 9.5 N or 2.1 lb. Fitted with silver contacts as standard, this model is perfect for your power switching applications.
