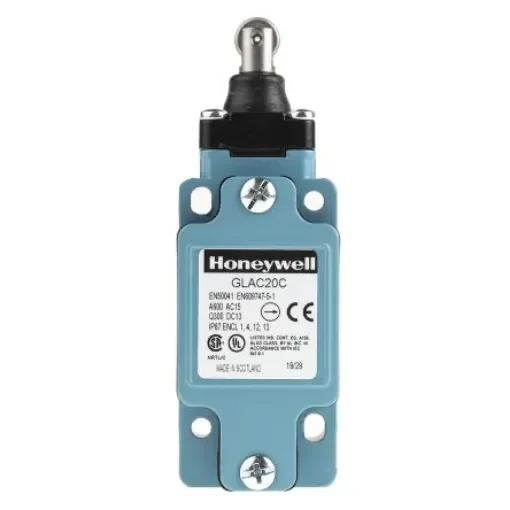

Honeywell GLA Series Plunger Limit Switch, 2NO/2NC, IP67, DPDT, Die Cast Zinc Housing, 600V ac Max, 10A Max - GLAC20C
Reliable plunger limit switch with 2NO/2NC configuration, ideal for power switching applications.
Manufacturer part number: GLAC20C
Actuator Type = Plunger
Pole and Throw Configuration = DPDT
Normal State Configuration = 2NO/2NC
IP Rating = IP67
Maximum Current = 10A
Housing Material = Die Cast Zinc
Maximum AC Voltage = 600V
Maximum DC Voltage = 250V
Connection Type = M20
Series = GLA
Action Type = Snap Action
Length = 82mm
Standards Met = CCC, CE, CSA, UL°C
Mounting Orientation = SideOperations
GLAC20C Limit SwitchModel GLAC20C is a double pole, double throw (DPDT) snap action limit switch. It features two normally open (NO) and two normally closed (NC) contacts. This limit switch has a stainless steel 12 x 5 mm roller plunger at the top of the unit. You can use limit switches with a roller plunger in applications where some degree of side thrust comes into contact with the cam. GLAC20C has a 20 mm conduit and operating torque of 16 Nm or 3.6 in-lb. Fitted with silver contacts as standard, this model is perfect for your power switching applications.
