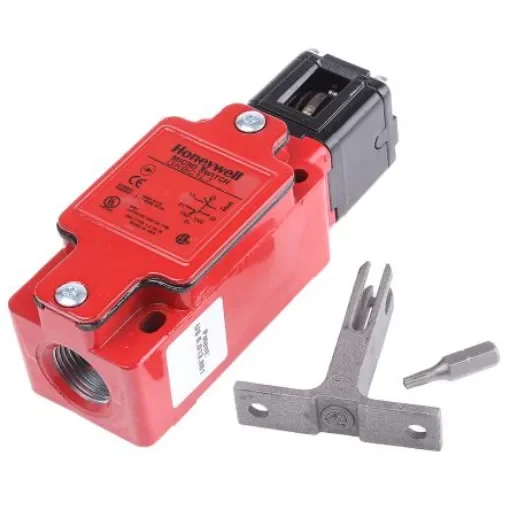

Honeywell GKB Safety Interlock Switch, 1NC/1NO, Keyed Actuator Included, Glass Filled PET - GKBC1L7

Lock Style = Keyed
Normal State Configuration = 1NC/1NO
Actuator Included = Yes
Safety Contacts = NC
Maximum AC Voltage = 600V
Maximum DC Voltage = 250V
Connection Type = M20
Housing Material = Glass Filled PET
IP Rating = IP67
Number of Head Directions = 2
Series = GKB
Width = 42mm

UL Listed, CSA Certified. GK Series. Heavy duty construction for harsh industrial environments Designed with a wide key entry tolerance, to accommodate drift in door alignment over the life of the machine, Compliance with the relevant European directives is assured with this design. Each switch is available with either a straight or a 90° key. Contact blocks have screw terminals enabling use of spade wiring terminals, complying with global safety requirements. Galvanically isolated contacts permit wiring normally closed and normally open contacts to different loads and polarities. Forced disconnect mechanism on normally closed contacts conforms to IEC 947-5-1. Resistance to tampering Built-in compensation for key misalignment IP67, NEMA 4 sealed enclosure - withstands high pressure washdown Typical applications include hinged and sliding guard doors, protective covers and enclosures on machine tools, packaging machinery, conveyors, elevators, cranes, hoists and lifts and construction machinery equipment Dimensions: H42.6mm, W30mm, D121.6mm
