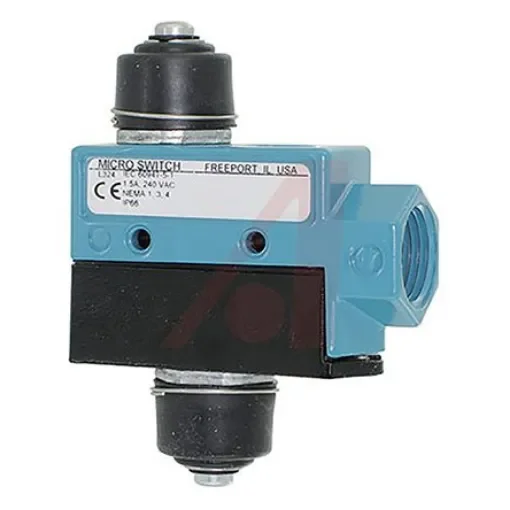

Honeywell BZE6 Series Plunger Limit Switch, NO/NC, IP66, SPDT, Die Cast Zinc Housing, 600V ac Max, 15A Max - BZE6-RNX1

Actuator Type = Plunger
Pole and Throw Configuration = SPDT
Normal State Configuration = NO/NC
IP Rating = IP66
Maximum Current = 15A
Housing Material = Die Cast Zinc
Maximum AC Voltage = 600V
Maximum DC Voltage = 250V
Connection Type = 1/2 in NPT
Series = BZE6
Action Type = Snap Action
Length = 25.4mm
Minimum Operating Temperature = -32°C
Mounting Orientation = Side

BZE6 Enclosed Limit Switches. The BZE6 series from Honeywell provides a range of metal housed limit switches with enhanced precision operation and robust actuation. The BZE6 limit switches allow for easy wiring by featuring a large wiring enclosure, the BZE6 range are all side mountable. BZE6 series featuring side mounting Die-cast zinc housing for robustness and durability Wide temperature operating range
