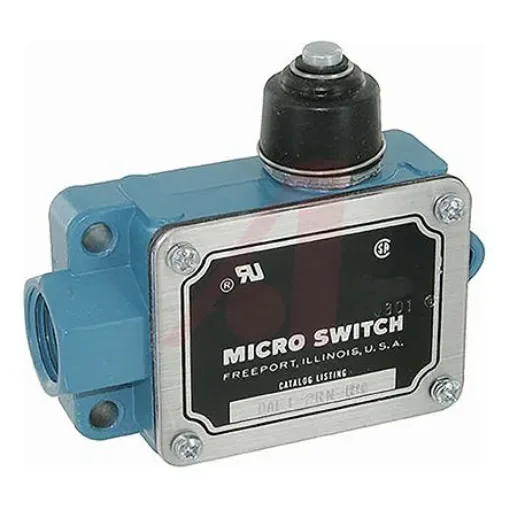

Honeywell BAF Series Plunger Limit Switch, NO/NC, SPDT, Die Cast Aluminium Housing, 480V ac Max, 20A Max - BAF1-2RN-RH

Actuator Type = Plunger
Pole and Throw Configuration = SPDT
Housing Material = Die Cast Aluminium
Maximum AC Voltage = 480V
Maximum DC Voltage = 250V
Connection Type = 1/2 in NPT
Series = BAF
Action Type = Snap Action
Length = 101.6mm
Depth = 33mm
Mounting Orientation = Vertical

BAF Medium Duty Limit Switches. The BAF limit switch series from Honeywell is designed for use within a medium duty environment. The elastomer boot on sealed actuator verions protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated "right" or "left," when looking at the nameplate. Cast aluminium housing Cover seal, captive cover screws Momentary or maintained contact
