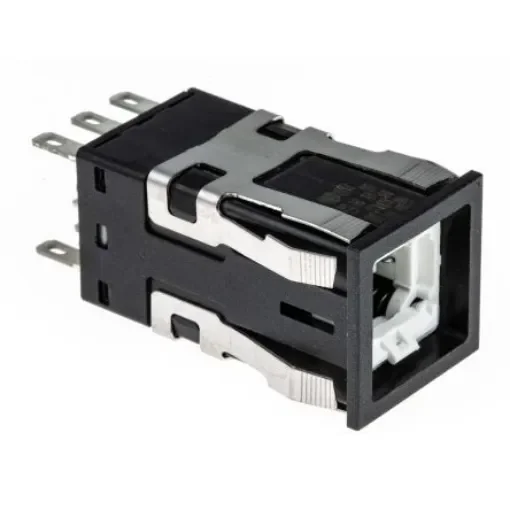

Honeywell AML21 Series Push Button Switch, Latching, Panel Mount, DPDT - AML21CBA2AD

Switch Operation = Latching
Illuminated = No
Series = AML21
Mounting Type = Panel Mount
Push Button Colour = Black
Contact Configuration = DPDT
Push Button Style = Rectangular
Contact Current Rating = 2 A @ 250 V ac
Contact Material = Silver
Manufacturer Part No. = AML21CBA2AD

UL; CSA; VDE. Lenses to be ordered separately, see stk no. ; 335-738 335-738 typically. Pushbutton Switches, Modular ; Illuminated. Square or rectangular switches and matching indicators with 110 (0.110in) terminals Illumination is by 6mm wedge bulbs, square types have one lamp circuit, rectangular have two DPDT momentary or latching action Illuminated or non-illuminated Integral lamp puller for easy removal of the bulb
