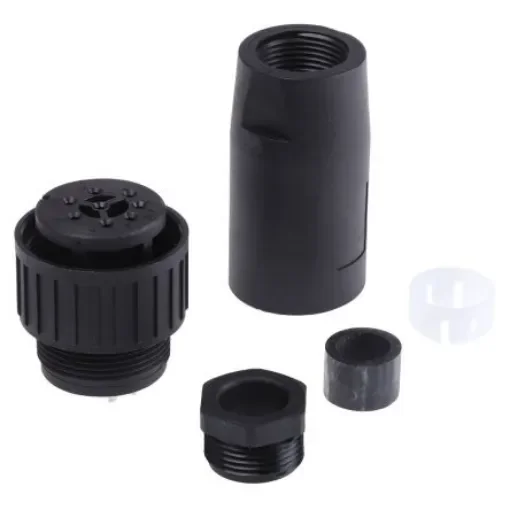

Hirschmann, CM, Silver 8 Way Cable Mount MIL Spec Circular Connector PlugBlack, Socket Contacts,Shell Size 20, Screw - 932842100 CM 06 EA 20-7 S

Number of Contacts = 8
Gender = Male
Contact Gender = Female
Current Rating = 10A
Voltage Rating = 50 V ac/dc
Shell Size = 20
Mounting Type = Cable Mount
Military Standard = MIL-DTL-5015
Termination Method = Solder
IP Rating = IP67
Mating Type = Screw Coupling
Body Orientation = Straight
Series = CM
Maximum Operating Temperature = +90°C

CM Cable Sockets and Panel Plugs. These Hirschmann CM Glass-fibre reinforced polyamide connectors give a viable alternative to metal style military connector ranges. The Hirschman CM range gives options of 3 to 17 poles in 14S and 20 shell sizes, are designed to MIL-C-5015 ; VG95342, and have the same mounting dimensions and contact arrangements as other manufacturers making them interchangeable with other screw locking types. They are also widely used for connecting continuous action and proportional action valves to DIN43563.
