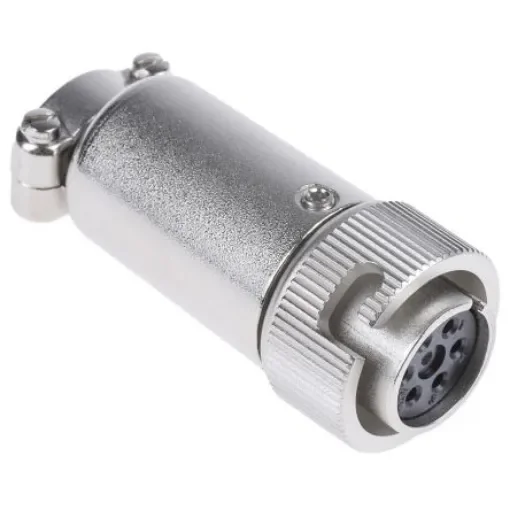

Hirose Circular Connector, 6 Contacts, Cable Mount, Miniature Connector, Plug, Female, RM Series - RM12BPE-6S(81)

Number of Contacts = 6
Mounting Type = Cable Mount
Connector Size = Miniature
Plug/Socket = Plug
Contact Gender = Female
Termination Method = Solder
Current Rating = 5.0A
Series = RM
Voltage Rating = 350.0 V , 490.0 V
Mating Type = Bayonet
Housing Material = Aluminium Alloy, Brass, Zinc Alloy
Contact Plating = Silver
Maximum Operating Temperature = +85°C

Hirose Circular ConnectorThe Hirose RM series 6-contacts female circular connector has a plug in-line type connection. This cable mount connector has a voltage rating of 350VAC/490VDC and a current rating of up to 5A per contact. This connector features a bayonet sleeve locking mechanism for an easy and secure connection with five keys in the fitting section to assure smooth coupling. It is a rugged miniaturized circular connector is made from nickel-plated brass and zinc alloy with a synthetic resin insulator. Note: For strain relief, see Hirose JR range Hirose RM range 10-way standard (15mm mating face dia.) connectors for video equipment. Consisting of cable or chassis mounting plugs and sockets with metal shells and solder type terminations.Features and BenefitsStraight body orientation Solder termination 2000 mating cycles Easy mating and unmating Excellent mechanical and electrical performance Minimum wire size is 20AWG Operation temperature ranging between -25°C and 85°C Shell size is 12mm UnshieldedApplicationsAudio and video applications Radio equipmentCertificationsUL approved
