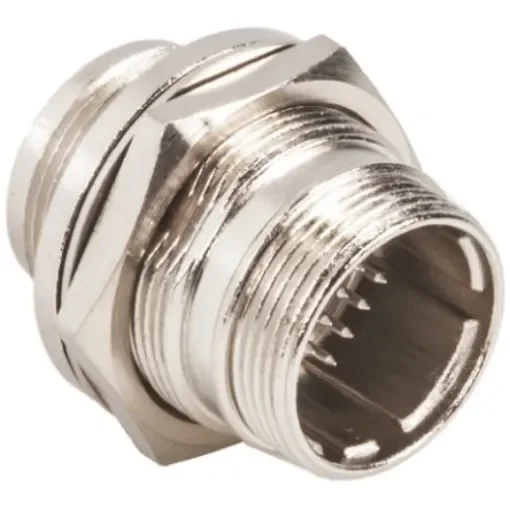

Hirose Circular Connector, 20 Contacts, Panel Mount, Miniature Connector, Socket, Female, IP67, IP68, HR22 Series - HR22-12WTRA-20P(73)

Number of Contacts = 20
Mounting Type = Panel Mount
Connector Size = Miniature
Plug/Socket = Socket
Contact Gender = Female
Termination Method = Solder
IP Rating = IP67, IP68
Current Rating = 2.0A
Body Orientation = Straight
Voltage Rating = 100.0 V
Shell Size = 12
Housing Material = Brass
Contact Plating = Silver
Maximum Operating Temperature = +85°C

Hirose HR22 Series Waterproof Compact Circular Connectors. Hirose HR22 series compact circular connectors were developed for use between machine tool motors and associated operation panels. These compact 20 pin circular connectors are waterproof and feature a screw coupling locking mechanism to prevent accidental unlocking due to vibration, available in panel mount receptacle and cable plug versions. Features and Benefits. • Connector shell zinc alloy and brass with nickel plating • Waterproof connector • PBT insulator • Silver plated connector contacts
