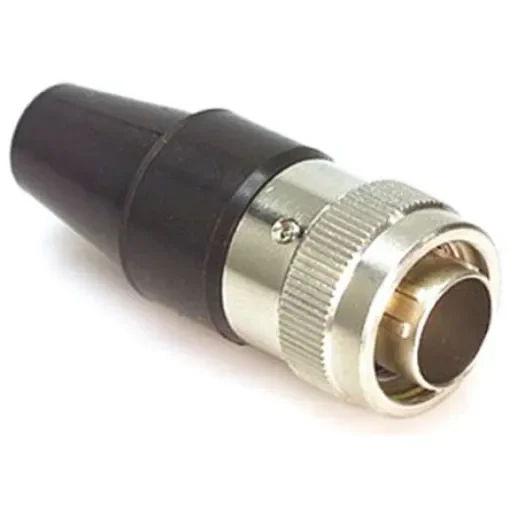

Hirose Circular Connector, 20 Contacts, Cable Mount, Miniature Connector, Plug, Male, HR22 Series - HR22-12TPD-20PC(73)

Number of Contacts = 20
Mounting Type = Cable Mount
Connector Size = Miniature
Plug/Socket = Plug
Contact Gender = Male
Termination Method = Crimp
Current Rating = 2.0A
Series = HR22
Voltage Rating = 300.0 V
Mating Type = Screw Lock
Housing Material = Thermoplastic
Contact Plating = Silver
Contact Material = Bronze

Hirose HR22 Series Compact Circular Connectors. Hirose HR22 series compact circular connectors were developed for use between machine tool motors and associated operation panels. These compact 20 pin circular connectors feature a screw coupling locking mechanism to prevent accidental unlocking due to vibration, available in jack and cable plug versions with crimp terminals or solder terminals. • Connector shell zinc alloy and brass with nickel plating • PBT insulator • Silver plated connector contacts
