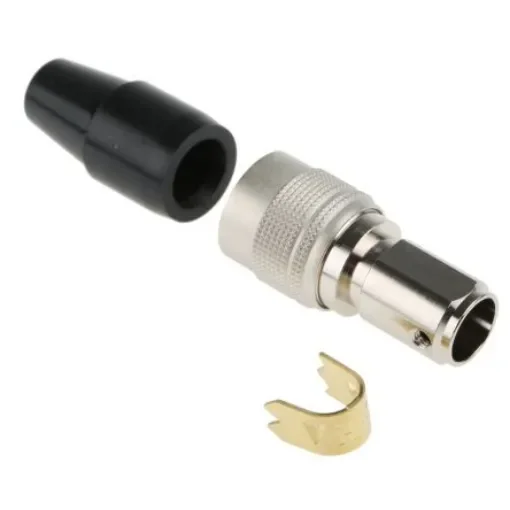

Hirose Circular Connector, 10 Contacts, Cable Mount, Miniature Connector, Plug, Male, HR10 Series - HR10A-10P-10P(73)

Hirose HR10A Series Push-Pull Circular Connectors. Hirose HR10A Series is a selection of high-performance plugs, sockets and jacks. The micro circular connectors are compact, durable and light weight. With their miniature design, the HR10A connectors provide a perfect solution for high-density applications where space is limited. Featuring a simple push-pull mechanism, connection and disconnection are completed in one smooth action. A five-key polarization system for accurate alignment ensures positive mating and the correct position is established, even when blind mating. • Cable mount plugs with male contacts mate with panel mount receptacles with female contacts for cable to panel applications • Cable mount plugs with male contacts mate with cable mount jacks with female contacts for cable to cable (in-line) applications Crimp or soldering termination. For suitable contacts see part numbers ; 184-6463 184-6463 and ; 184-6476 184-6476 for female and ; 764-4543 764-4543 and ; 166-4963 166-4963 for male contacts. Hand crimp tools are available, see part number ; 772-7115 772-7115. Features and Benefits. • Five Key polarization for accurate alignment • Single action push-pull coupling mechanism • High-density mounting for space saving • Compact and lightweight design • Solder or crimp contacts. Applications. The HR10A series of connectors are Ideal for use in commercial, industrial, electronic and electrical small sized equipment. Some of the most common are. • Computers and peripherals • Audio equipment • Video equipment • Portable wireless equipment • Measuring equipment • Instrumentation. FAQ. Q - How robust are the connectors? A - The HR10A connectors are manufactured from tough engineering materials. They are robust and reliable. Q - Are there any accessories? A - A selection of circular dust caps are available for added protection from dust and moisture. Dust caps protect the connector when not in use.
