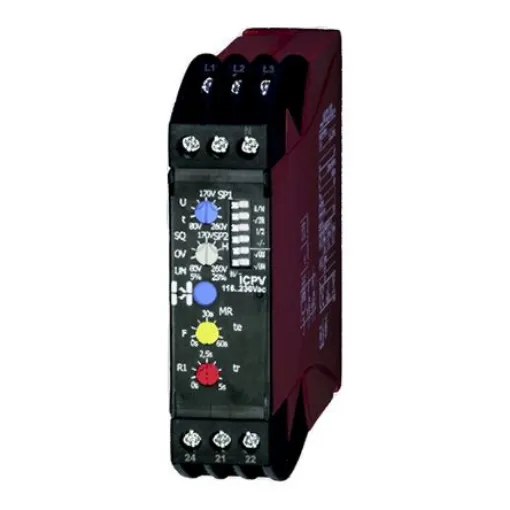

Hiquel Phase Monitoring Relay, 3 Phase, DPDT, DIN Rail - ICP-V (4-Wire)
Ensure reliable phase protection with Hiquel's 3 Phase Monitoring Relay, featuring adjustable alarm functions.
Manufacturer part number: ICP-V (4-Wire)
Only Ships to: France, Monaco For shipping outside these regions, please contact customer support.
ICP Series 3 Phase Monitoring Relay. Hiquel ICP monitors phase-failure, phase-sequence and phase-asymmetry for supplies with or without neutral. Thresholds for alarm functions, alarm reaction time and phase-asymmetry can be easily adjusted using the rotary switches on the front plate. When monitoring a 3 phase ; neutral system, the neutral must be connected to the N-terminal and the monitoring function must be enabled by a dip switch. 3 phase monitoring relay for 3x230/400V Detects phase failure, phase sequence and phase asymmetry Detects phase failure with regenerated voltage present For power supply with or without neutral connections 3 selectable voltage measurement functions Automatic and manual reset selectable Selectable measuring range Alarm memory function DPCO alarm relay LED indicator 22.5 mm DIN Rail mount housing
