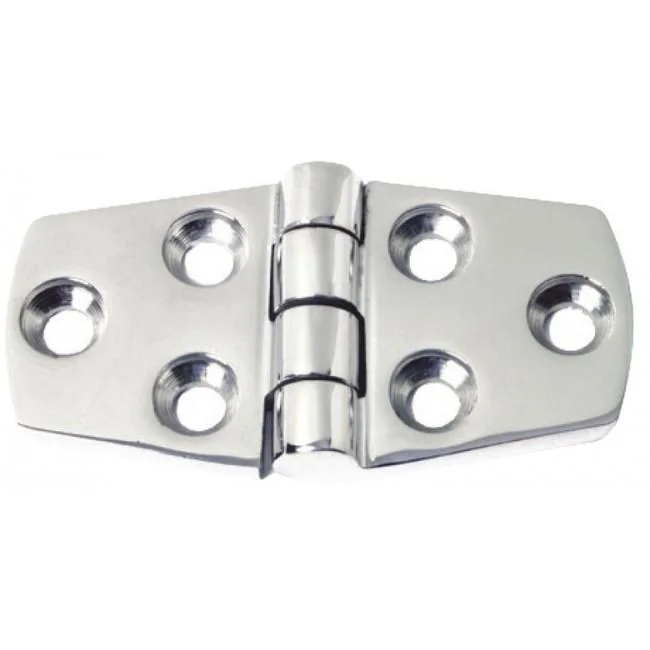

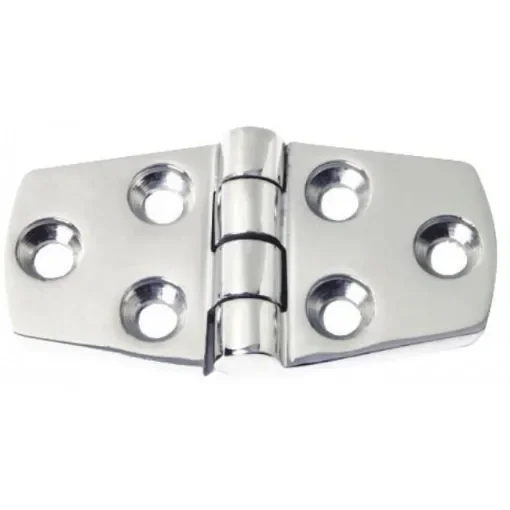

Key Features:
- Constructed from A4 grade stainless steel, offering enhanced corrosion resistance.
- Features a rolled knot design for discreet and secure mounting.
- Polished finish for an aesthetically pleasing appearance.
Technical Specifications:
- Length: 76 mm
- Width: 77 mm
- Thickness: 2.5 mm
- Joint Diameter: 11.5 mm
- Pin Diameter: 6 mm
- Number of Joints: 5
- Number of Holes: 4
- Hole Diameter: 6.5 mm
- Weight: 0.151 kg
Materials:
- Hinge Body: Stainless steel A4 (1.4401)
- Hinge Pin: Stainless steel A4 (1.4401)
Dimensions:
- Length (A): 76 mm
- Width (B): 77 mm
- Thickness: 2.5 mm
- Joint Diameter: 11.5 mm
- Pin Diameter: 6 mm
- Number of Joints: 5
- Number of Holes: 4
- Hole Diameter: 6.5 mm
- Weight: 0.151 kg
Compatibility Information:
- Suitable for marine environments due to its corrosion-resistant properties.
- Ideal for applications requiring a discreet hinge design.
Additional Details:
- The rolled knot design ensures a secure and nearly invisible hinge when the door is closed.
- The polished finish enhances the aesthetic appeal of the hinge.
